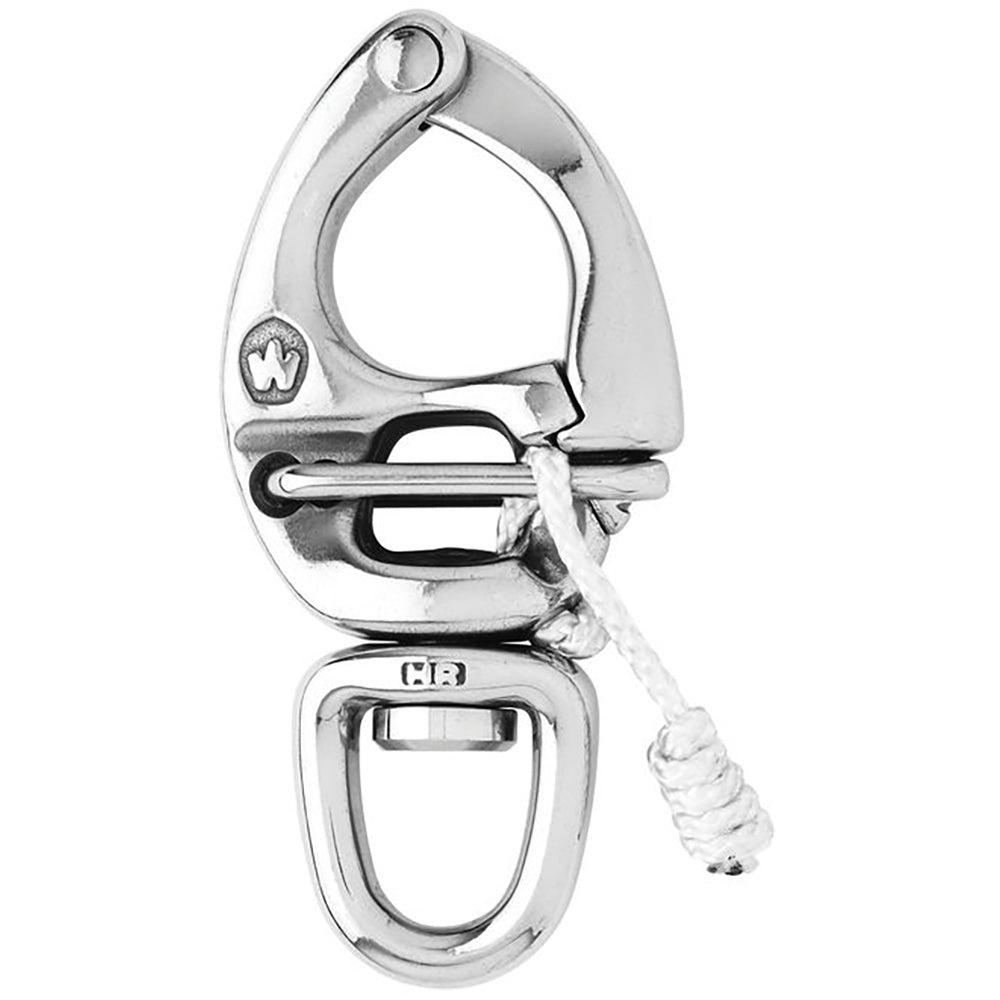

Wichard Marine 2676 HR Quick Release Snap Shackle with Swivel Eye - 4-21/64 Inches

HR Quick Release Snap Shackle With Swivel Eye -110mm Length- 4-21/64"

Features:

• HR forged (17.4 PH) quick-release snap shackle with swivel eye


• The opening is made by pulling the lanyard


• Perfect to attach one sheet or halyard


• Outstanding working and breaking loads


• Free rotation of the snap shackle thanks to the swivel

Applications:

• For spinnaker operations


• Perfect for spinnaker sheets and halyards

Specifications:

• Materials: HR 17.4 PH stainless steel grade


• Working load: (lb) 5290 / (kg) 2400


• Breaking load: (lb) 9250 / (kg) 4200


• Weight: (lb) 0.514 / (g) 233

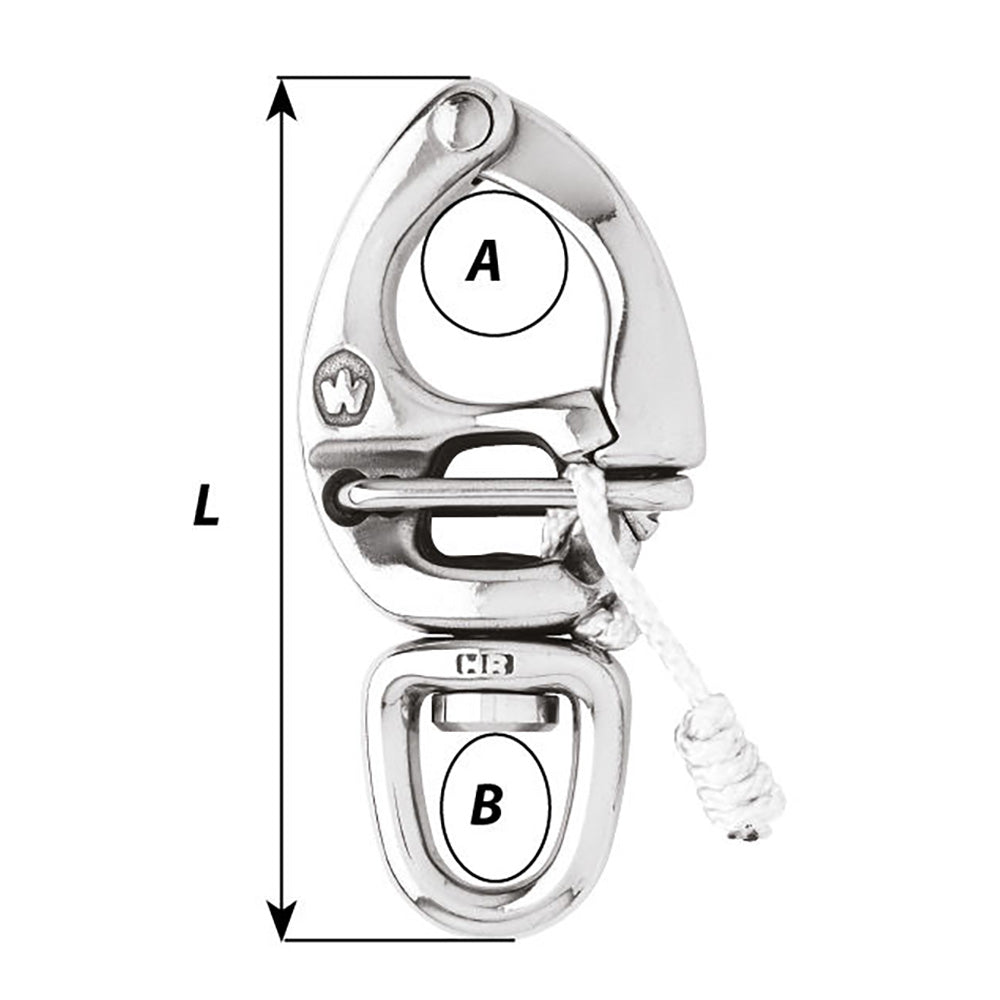

Dimensions:

• A: (inch) 63/64" / (mm) 25


• B: (inch) 5/8" / (mm) 16


• Length: (inch) 4 21/64" / (mm) 110

Caption:

• Working Load (WL): For nautical applications


• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5


• High Resistance (HR)

*Sold as an Individual

The innovative design features a lanyard pull mechanism for effortless opening, providing a practical solution for sailors looking for quick adjustments. With outstanding working and breaking loads, this snap shackle guarantees safety and durability under the most demanding conditions. Trust in Wichard Marine's reputation for excellence as you navigate the waters with confidence.

Features:
* HR forged (17.4 PH) construction for maximum strength: HR forged (17.4 PH) construction for maximum strength
* Quick-release mechanism activated by pulling the lanyard: Quick-release mechanism activated by pulling the lanyard
* Perfect for attaching sheets or halyards with ease: Perfect for attaching sheets or halyards with ease
* Outstanding working and breaking loads to ensure safety: Outstanding working and breaking loads to ensure safety
* Swivel eye allows for free rotation, enhancing functionality: Swivel eye allows for free rotation, enhancing functionality
