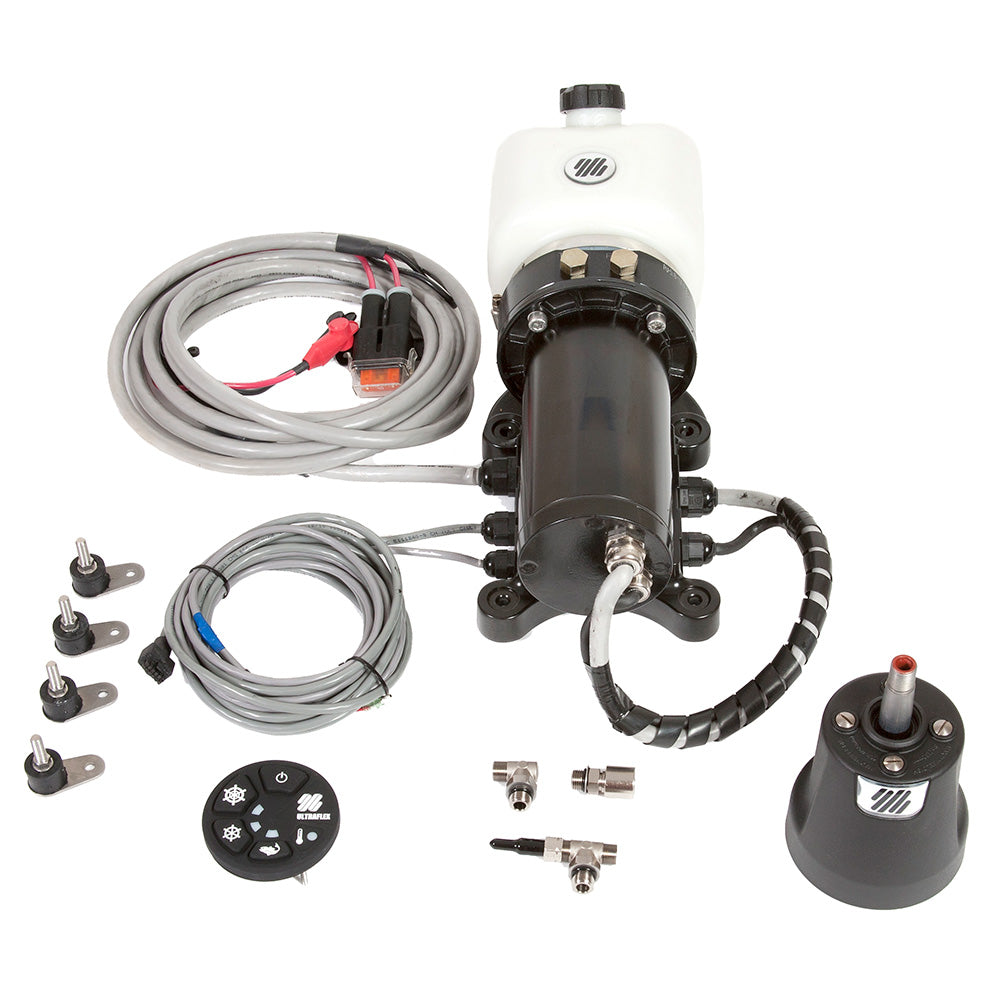

Uflex MasterDrive Single Station Retrofit Kit MD40-FM Includes Helm, Interface, MasterDrive, Power Unit - MD40FM

MasterDrive Single Station Retrofit Kit MD40-FM Includes Helm, Interface, MasterDrive, Power Unit

Features:

• Eliminates torque at the steering wheel


• Three different selectable levels of power give the boater the desired feeling on the wheel (PATENTED)


• Automatically reverts to manual mode in case of power loss


• High efficiency, low AMP draw


• The system is always running permits immediate control in any sea conditions


• Equipped with a safety switch ON/OFF (SMART BUTTON)


• Can be used on dual-station installations


• Suitable for use with an autopilot


• Low noise


• Voltage: 12VDC


• CE marked in conformity with ABYC P21, ISO 10592 safety standards


• Ignition protected (SAE J-1171 and UNI EN 28846)

Whats In The Box System Components 1 single packaged KIT MD40FM Dual Cylinder containing:

• 1 UH40-F Front Mount Master Helm


• 1 UPMD Power Unit, 15 (4,5 m) wiring harness included


• 1 UCMD User Interface

This is a standard Inboard kit that does not include Cylinders, Hose Kits, or Steering wheels. Please indicate what Cylinder model is needed. You will also need to order Hose Kits (Not Included) and a Steering Wheel if required.

Optional Second Station Kit Not included with the above-listed MD Kit:

• 1 KIT MD2: for dual station


• Flexible hydraulic hoses


• 1 Tilt mechanism X66-40613 M suitable for Tilt Mount Helm. Tilt range of 48 and five locking positions.


• 1 Dual cylinder application Tie Bar: See Selection (Outboard Application Only)


• 1 Steering Wheel: See Selection


• 1 Instruction manual

Note: The MasterDrive helms (both the UH Master and the UHD slave for a dual station), the UPMD Power Unit and the UCMD User Interface are the same products shown on the outboard MasterDrive system.
