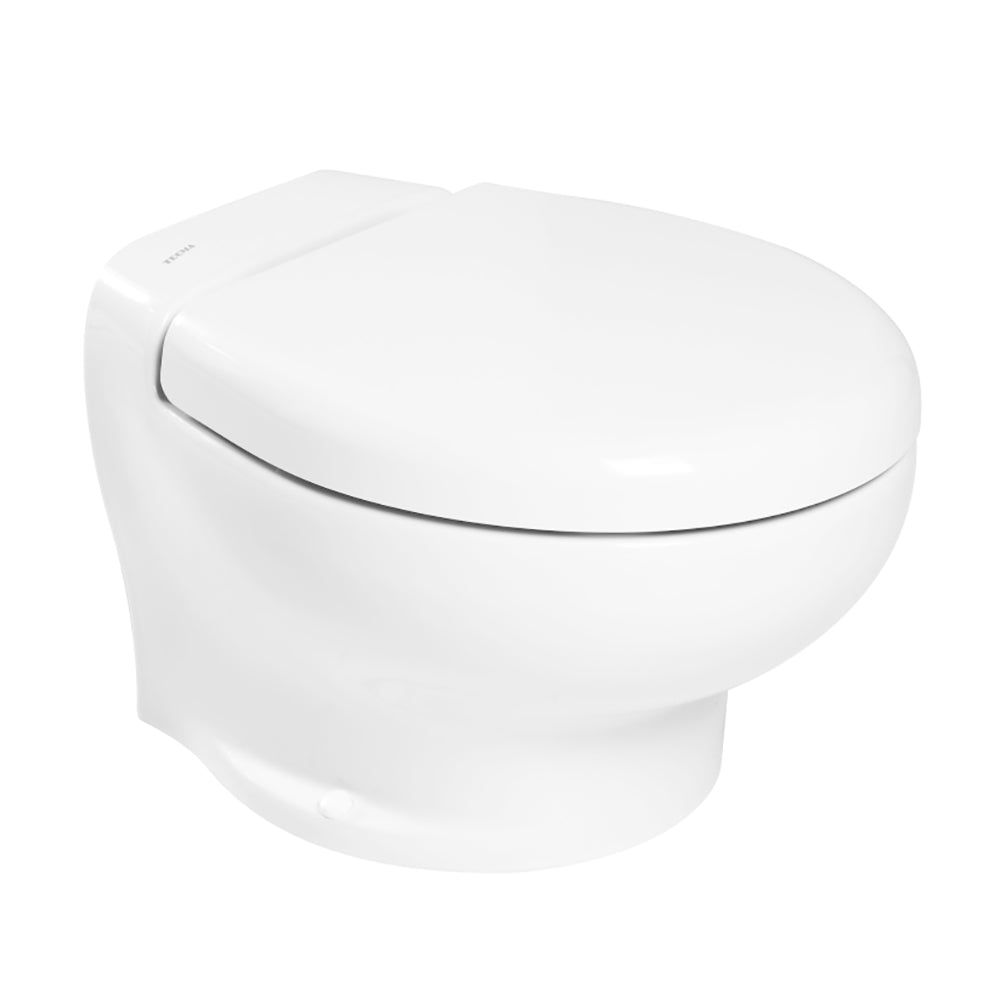

Thetford Nano Touch Compact Toilet - 12V - T-NAN012PW/TSFT/NA

Nano Touch Compact Toilet - 12V

The Tiny Turbo Toilet!

From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks to its compact size.

Features:

• Uses 2 check valves and this combined with a water trap ensures there are no odor issues


• Incredibly quiet operation


• Can use both raw water and pressure water flush


• Leaves a clean, dry bowl after every powerful flush


• User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features

Technical Specifications:

• Material - Italian ceramic


• Flush Rate - 0.1-0.7 gallons per flush


• Outlet pump recommended fuse - 30A


• Outlet pump performance - 13.1ft vertical suction, 131.2ft horizontal suction


• Inlet solenoid (freshwater) power consumption - 9.5W


• Inlet pump (raw water) fuse - 8A


• Inlet pump (raw water) pressure - 45 PSI

In the Box:

• 1 - 12v Tecma Nano toilet


• 1 - Wall switch and controller


• 1 - Black wall switch bezel


• 1 - Bone wall switch bezel


• 2 - 1/4 10 x 2.5” stainless steel lag screws


• 2 - 1/4” stainless steel washer


• 2 - Plastic washers


• 2 - Bolt caps


• 2 - Hose clamps – 1 1/4”- 2”, Stainless


• 1 - Full tank sensor


• 1 - Lower Discharge Check Valve (with straight and elbow fittings)


• 1 - Installation/Owner's Manual
