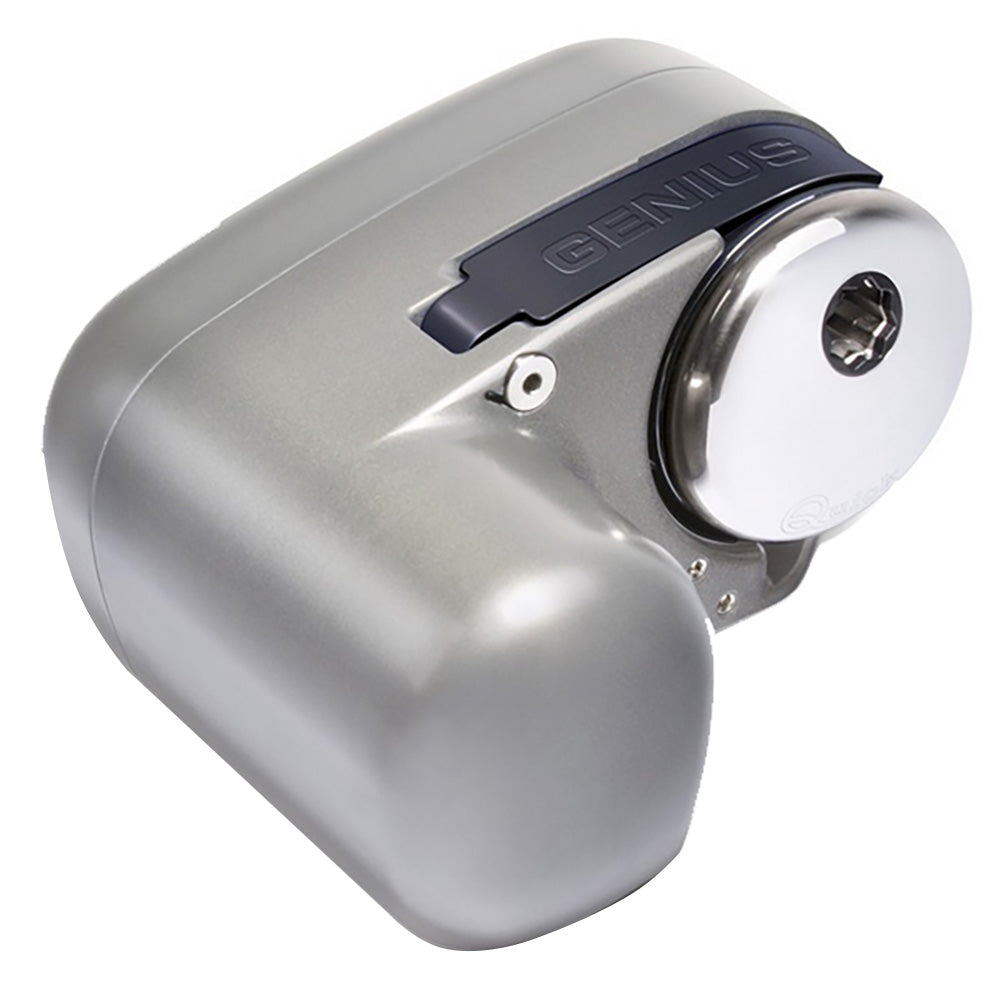

Quick GP2 2000 Horizontal Windlass - 800W 12V with 5/16 inch Drum - FSGP22012D05A00

GP2 2000 Horizontal Windlass - 800W - 12 V - 5/16" Drum

The GP2 2000 is a horizontal windlass application windlass that is perfect for boats with limited space in the anchor locker. This unit comes equipped with an enclosed motor and an epicyclical gearbox. The casing is composed of plastic composite material for the 800 W unit. This unit also has a manual freefall capability for quick anchoring. The unit is sold complete with the windlass, solenoid unit, clutch handle, mounting hardware, and user manual.

Features:

• Windlasses are equipped with an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes)

Specifications:

• Weight: 32 lbs.


• Dimensions: 17 17 12 in.


• Drum: Yes


• Gypsy Size: 5/16 in. (7.94 mm)


• Series: Genius


• Freefall: No


• Voltage: 12V


• Motor Power 800W


• Motor Supply Voltage: 12 V


• Maximum Pull: 1984 lb.


• Maximum Working Load: 772 lb.


• Working Load: 265 lb.


• Current Absorption at Working Load (1): 76 A


• Maximum Chain Speed (2): 97..1 ft/min


• Maximum Chain Speed at Working Load (2): 65.9 ft/min


• Weight Mini Genius with Drum: 25.3 lb.

The Quick GP2 2000 Horizontal Windlass is an efficient and compact anchoring solution designed for boats with limited space in the anchor locker. Powered by an 800-watt motor operating on 12 volts, this windlass features a robust plastic composite casing that ensures durability and lightweight performance. Its design includes an enclosed motor and an epicyclical gearbox, which provides about 40% higher efficiency compared to traditional gearboxes, resulting in smoother operation and reduced power consumption. The unit comes complete with a 5/16 inch (7.94 mm) drum, solenoid, clutch handle, mounting hardware, and a user manual, making installation straightforward and user-friendly.

Features:

• Epicyclical gearbox: delivers approximately 40% higher efficiency over traditional gearboxes

• Plastic composite casing: durable and lightweight construction

• Manual freefall capability: allows quick anchoring when needed

• Includes complete mounting hardware and user manual for easy installation

• Designed for boats with limited space in the anchor locker
