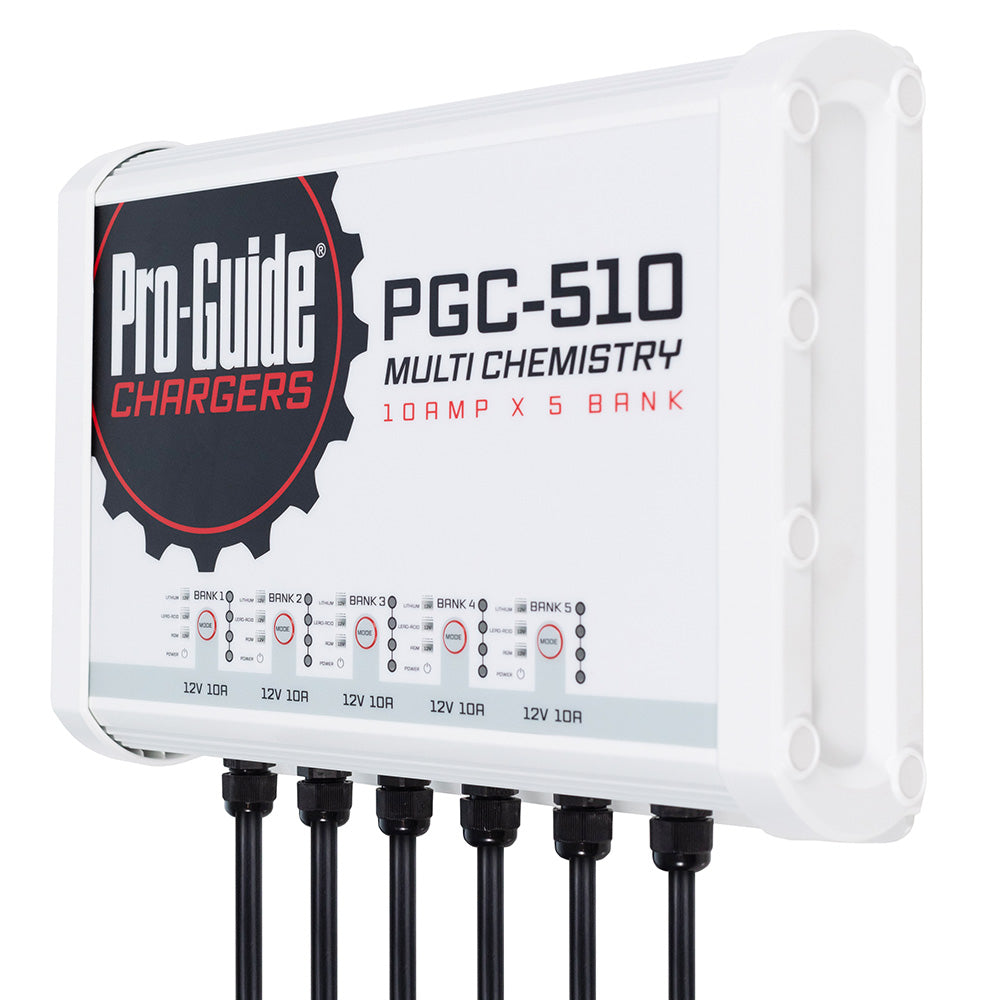

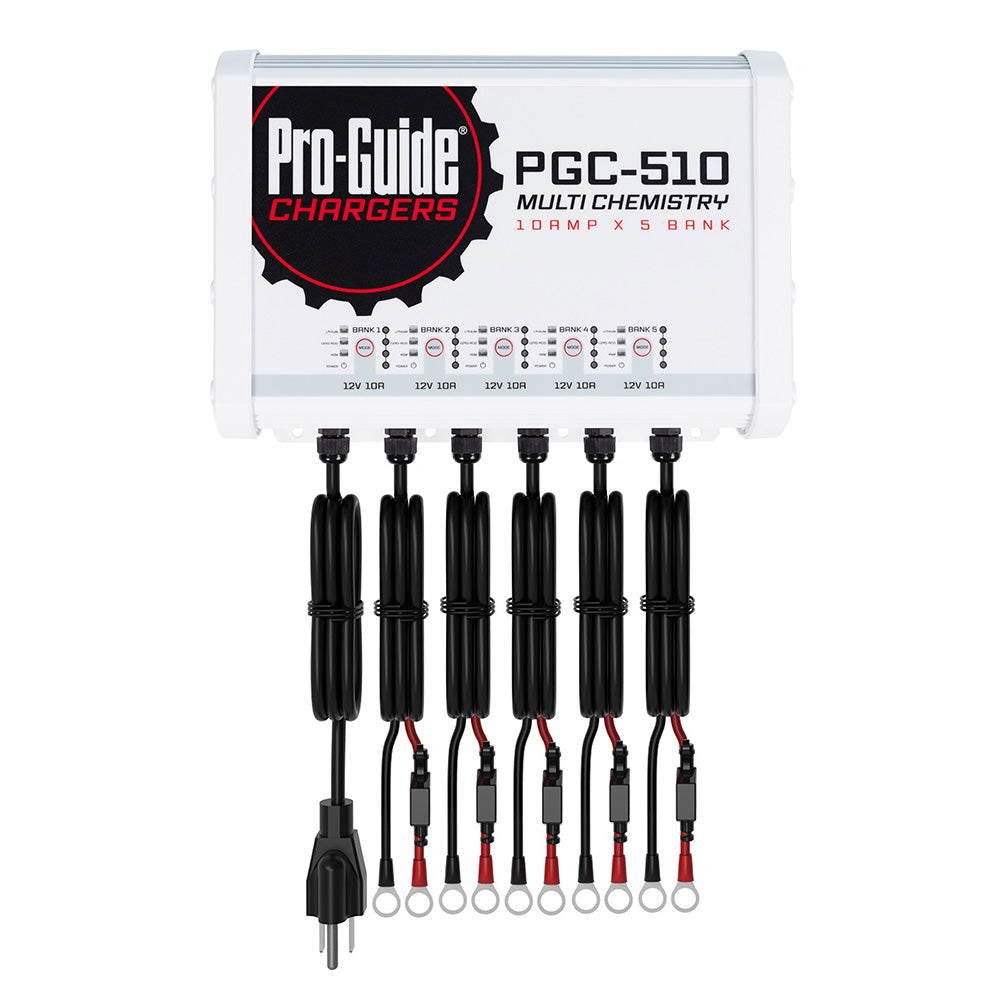

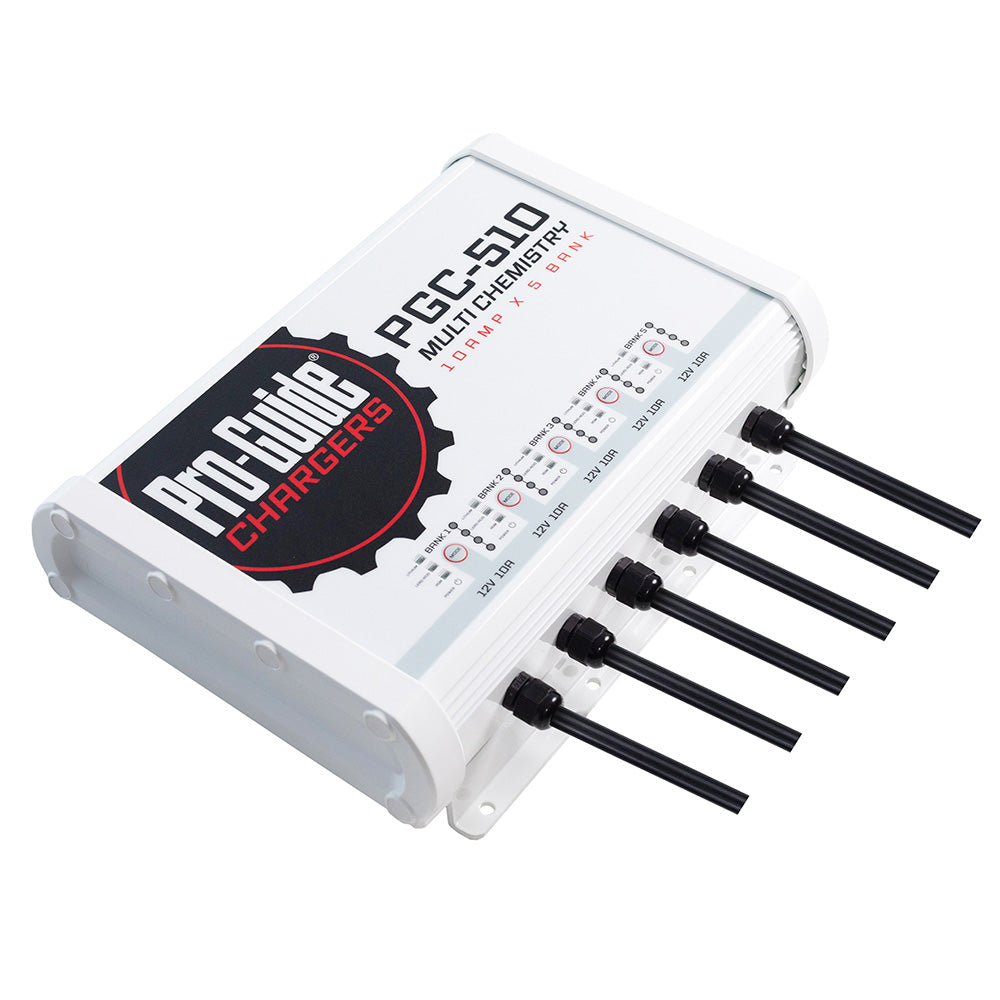

Pro-Guide Batteries 5 Bank On-Board Battery Charger - 12V - 40-Amp - PGC-510

5 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-510 is a 12V on-board battery charger for lead-acid, AGM, and lithium batteries.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium


• Output Voltage: DC 12V x 5


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery


• Output Current: 10A x5


• Length: 13.15


• Width: 9.96


• Height: 3.86


• Weight: 24.3 lbs


• IP Rating: 68

The Pro-Guide Batteries PGC-510 is a versatile 12V on-board battery charger designed to keep multiple batteries charged and ready for action. Suitable for lead-acid, AGM, and lithium batteries, this charger features five independent banks, each capable of selecting one of three customizable charge profiles to optimize your battery maintenance. This flexibility allows users to mix and match charging modes for different battery types, ensuring optimal performance and longevity.

The PGC-510 includes an activation mode that supplies a brief voltage pulse to awaken sleeping lithium batteries or allows manual activation by holding a button for 3-5 seconds. Its intelligent algorithm continuously monitors each battery's state of charge, checking on a specific timeline and maintaining full charge readiness without the need for constant supervision. This design ensures your batteries are consistently prepared for your next adventure, whether on the road or at the dock.

Constructed with durability and safety in mind, the PGC-510 offers comprehensive protection features, including output over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards. It operates efficiently with an input voltage of 110-120V AC at 60Hz, drawing less than 6 amps during operation. This charger is built to stay plugged in year-round, providing a reliable power source without frequent maintenance. Backed by over 40 years of expertise and a 2-year free warranty plus a total of 4 years of coverage, the Pro-Guide PGC-510 ensures a dependable charging solution for demanding environments. Its robust IP68 rating guarantees resistance to dust and water, making it suitable for rugged applications and outdoor use.

Features:

• Five independent charge banks with customizable profiles for lead-acid, AGM, and lithium batteries

• Activation mode to wake sleeping lithium batteries or manual activation for convenience

• Intelligent algorithm continuously monitors and maintains optimal battery charge

• Comprehensive safety protections including over-voltage, over-current, short circuit, reverse polarity, and over-temperature

• Durable construction with IP68 rating for dust and water resistance

• Designed for year-round use with a built-in maintenance charging capability

• Compatible with 12V battery systems, supporting multiple battery types for versatile applications
