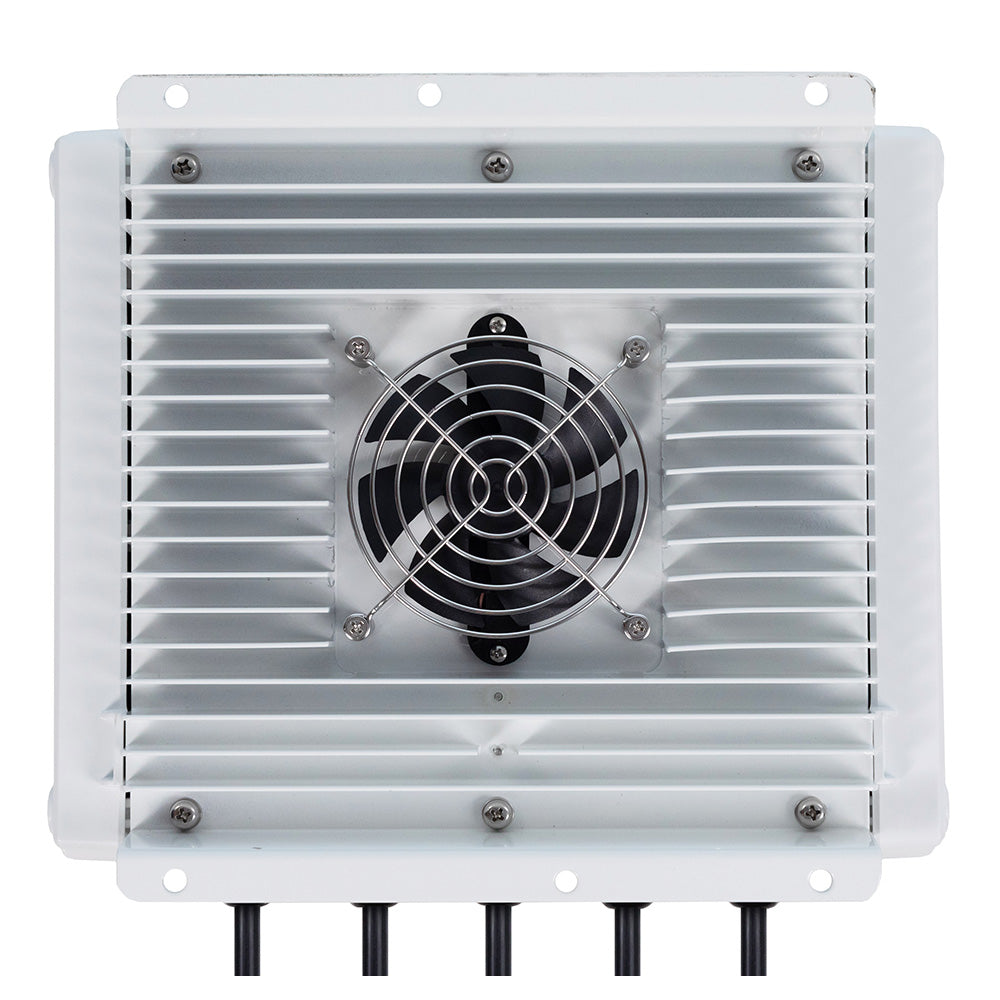

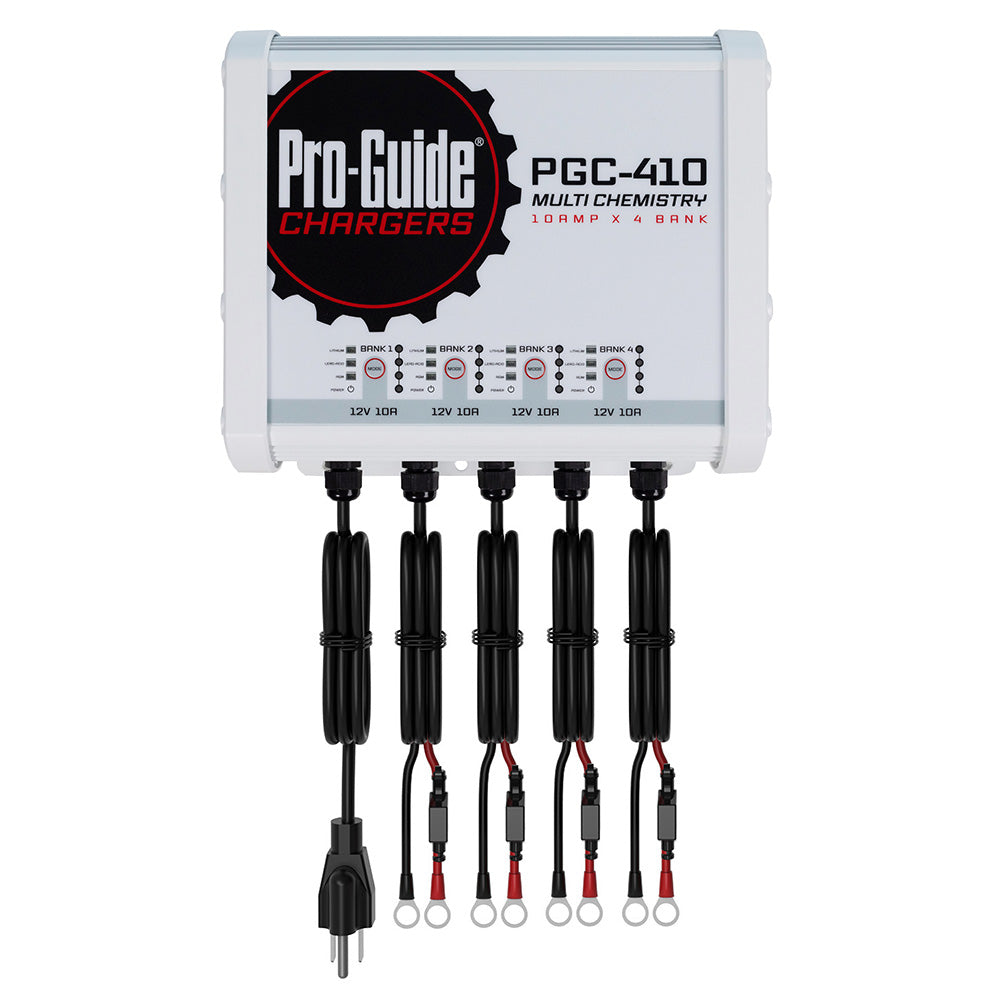

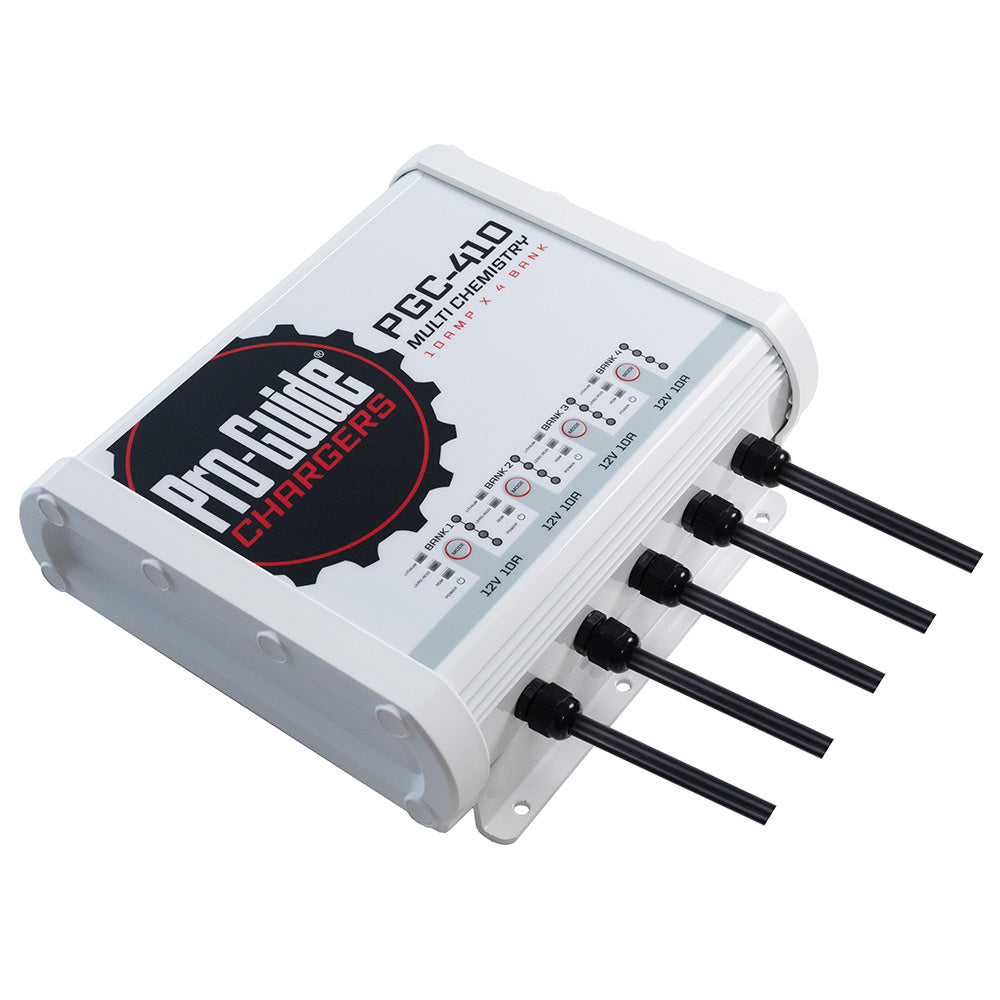

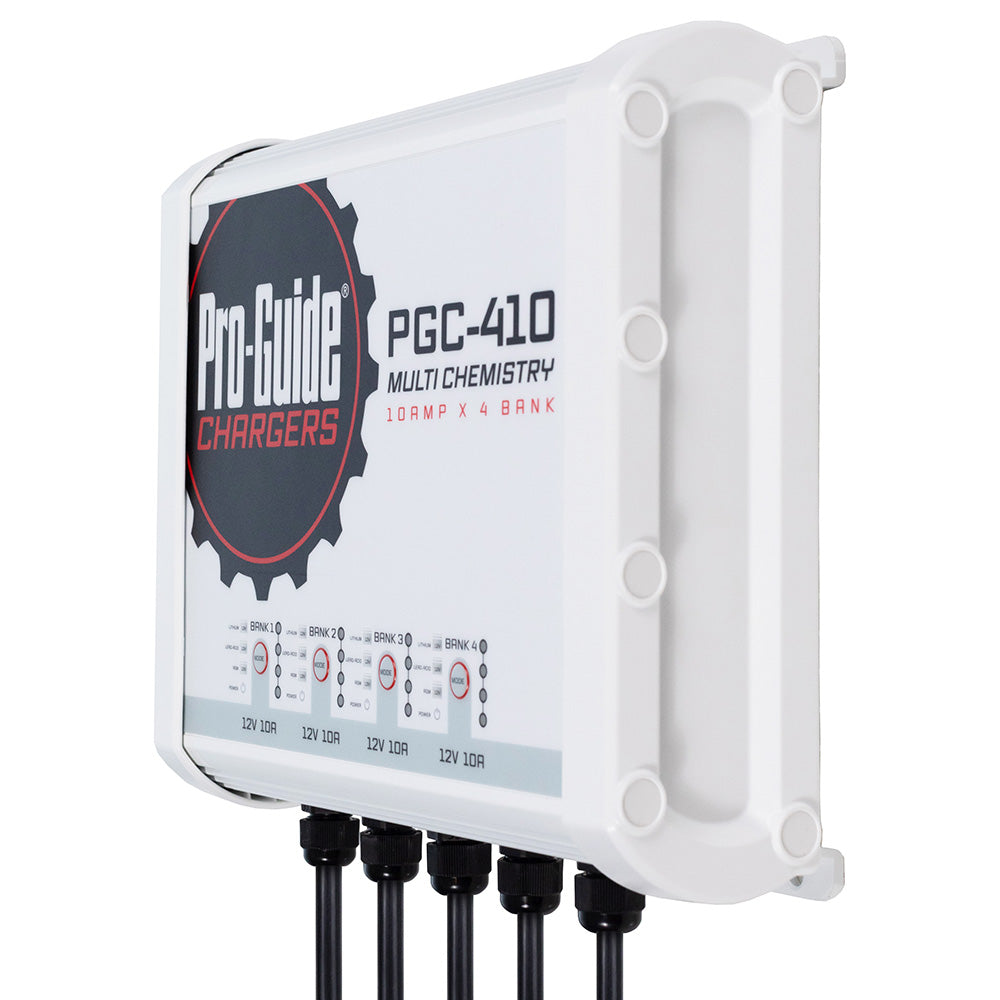

Pro-Guide Batteries 4 Bank On-Board Battery Charger - 12V - 40-Amp - PGC-410

4 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-410 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium


• Output Voltage: DC 12V x 4


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery


• Output Current: 10A x4


• Length: 10.71


• Width: 9.96


• Height: 3.86


• Weight: 18.7 lbs


• IP Rating: 68

The Pro-Guide PGC-410 is a versatile 4-bank 12V on-board battery charger designed for Lead Acid, AGM, and Lithium batteries. Its advanced charging profiles allow users to select one of three options for each bank, enabling optimal charging performance tailored to specific battery types and conditions. The activation mode provides a quick voltage pulse to wake sleeping Lithium batteries, while a manual activation option ensures flexibility in maintaining battery readiness for your adventures. The PGC-410 is engineered for year-round use, with an intelligent algorithm that monitors each battery's state of charge and maintains optimal voltage levels, so your batteries are always ready when you need them. With over 40 years of experience, Pro-Guide Batteries supports this product with a two-year free warranty and a total four-year warranty, underscoring its reliability and quality. The charger includes comprehensive protection features such as output over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards to ensure safe operation in various conditions. It operates on standard AC power with input specifications of 110-120V at 60Hz and consumes less than 6A of current. The output delivers up to 10 amps per bank at 12V, with adjustable maximum voltage settings specific to battery type—14.1 to 14.3 volts for Lead Acid, 14.3 to 14.7 volts for AGM, and 14.4 to 14.7 volts for Lithium. Compact and durable, this charger measures approximately 10.7 inches in length, 10 inches in width, and 3.9 inches in height, weighing around 19 pounds, with an IP68 rating for dust and water resistance, making it suitable for demanding environments. Whether for RVs, boats, or utility vehicles, the Pro-Guide PGC-410 offers reliable, maintenance-free charging for multiple batteries, ensuring your equipment remains powered and ready for any adventure.

Features:

• Four independent charging banks with selectable profiles for optimized battery care

• Supports Lead Acid, AGM, and Lithium battery types for versatile applications

• Activation Mode: quick voltage pulse to wake Lithium batteries, with manual hold option

• Intelligent charging algorithm continuously monitors and maintains battery health

• Built-in protection against over-voltage, over-current, short circuit, reverse polarity, and temperature extremes

• Operates on standard 110-120V AC power with low current draw of less than 6A

• Maximum output of 10 amps per bank with adjustable voltage settings for different battery chemistries

• Compact, durable design with IP68 water and dust resistance rating for all-weather use

• Designed for year-round installation, suitable for RVs, boats, and utility vehicles

• Supported by a 2-year free warranty and a total 4-year warranty, ensuring peace of mind
