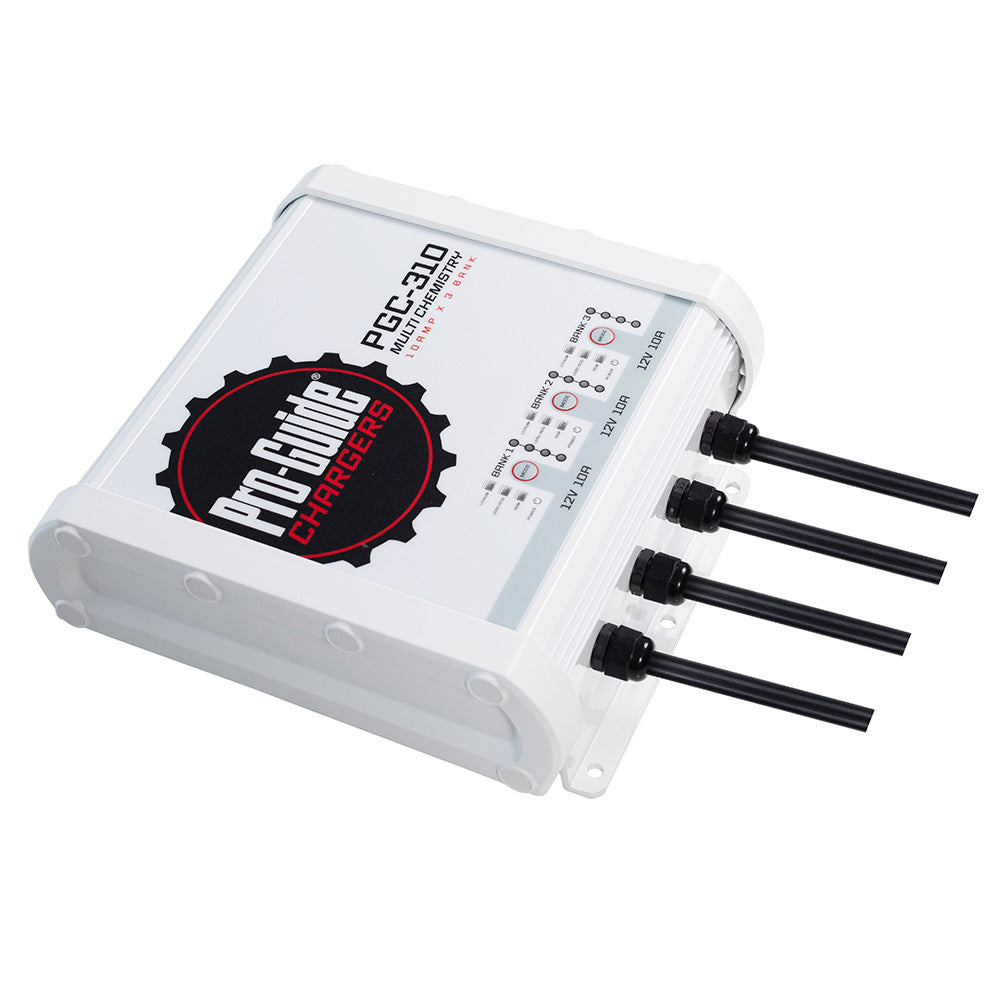

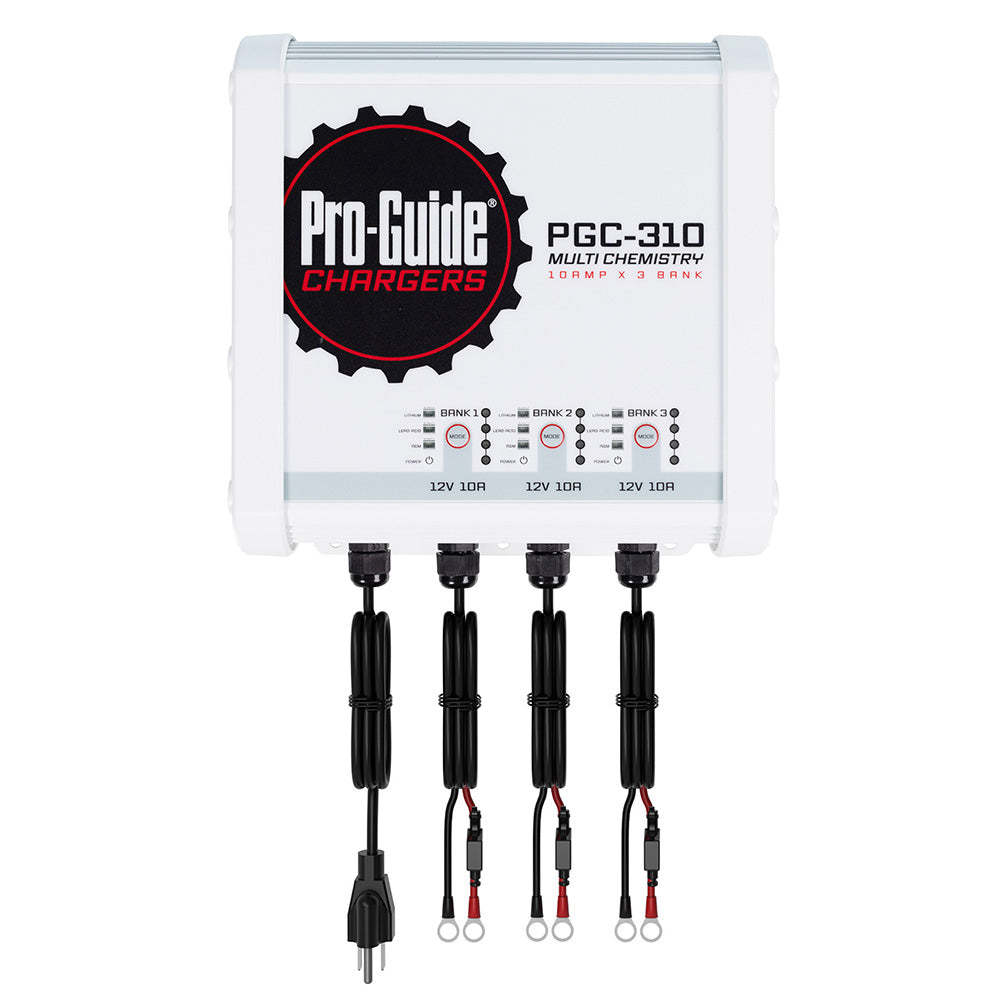

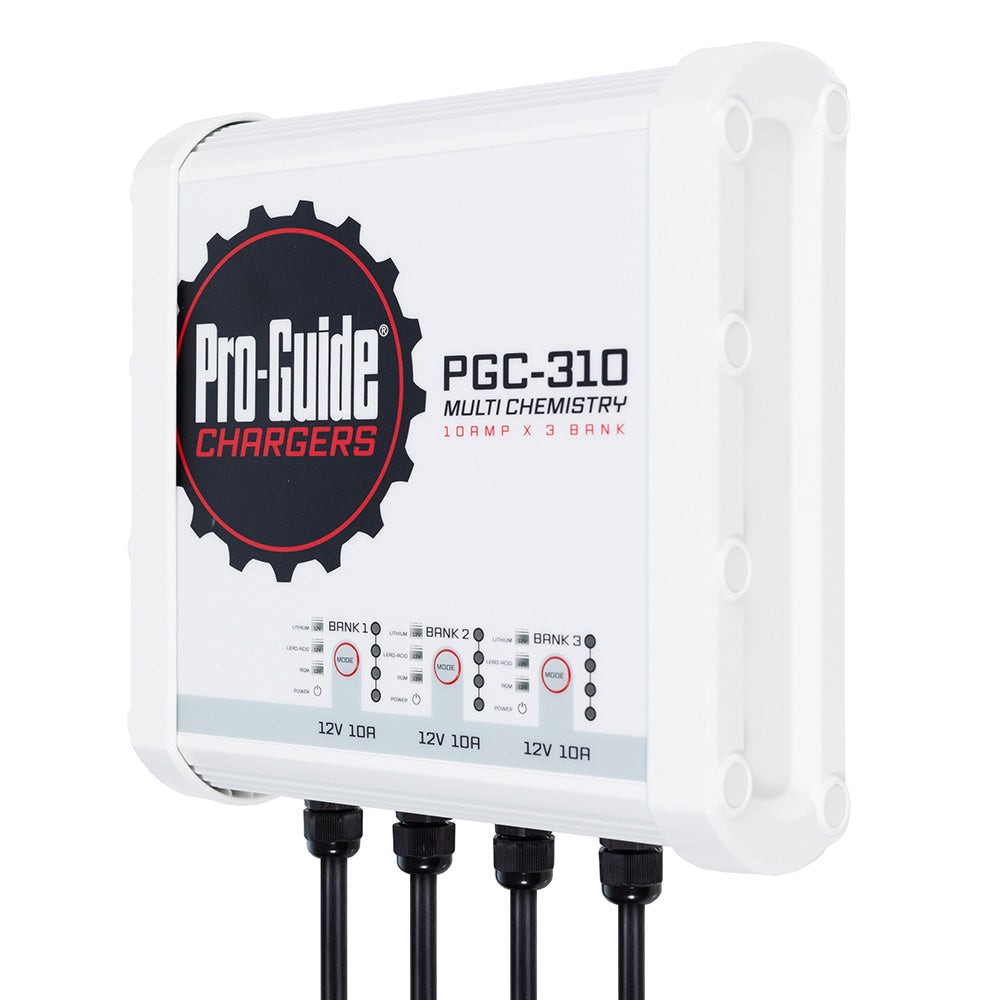

Pro-Guide Batteries 3 Bank On-Board Battery Charger - 12V - 30-Amp - PGC-310

3 Bank On-Board Battery Charger - 12V - 30-Amp

The Pro-Guide PGC-310 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium


• Output Voltage: DC 12V x 3


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery


• Output Current: 10A x3


• Length: 9.06


• Width: 9.96


• Height: 3.86


• Weight: 15.9 lbs


• IP Rating: 68

The Pro-Guide PGC-310 is a versatile 12V on-board battery charger designed for Lead Acid, AGM, and Lithium batteries. With three selectable charge profiles, it allows users to customize charging based on their specific battery setup, ensuring optimal performance and longevity. The charger features an activation mode that supplies a brief voltage boost to wake sleeping Lithium Batteries or can be manually activated with a simple button hold, providing flexibility for various maintenance needs. Its intelligent algorithm continuously monitors each battery's state of charge, making it suitable for year-round installation without the need for frequent unplugging.

Features:

• Three selectable charge profiles to optimize battery performance for Lead Acid, AGM, and Lithium batteries

• Activation Mode: Supplies a short voltage boost to wake batteries or manual activation for maintenance

• Intelligent charging algorithm monitors each battery's state of charge for consistent performance

• Designed for permanent installation with features to ensure safe operation year-round

• Protection features include over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards
