Pro-Guide Batteries 3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp - PGC-21236

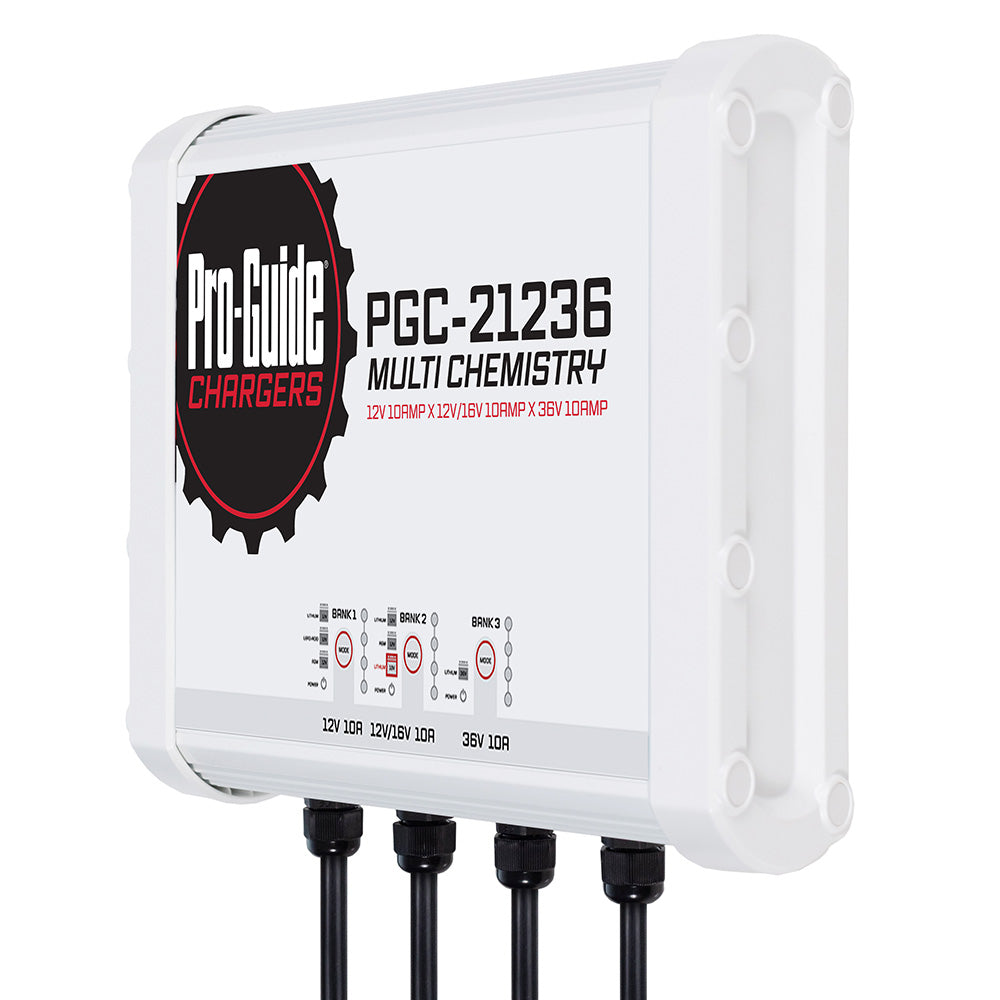

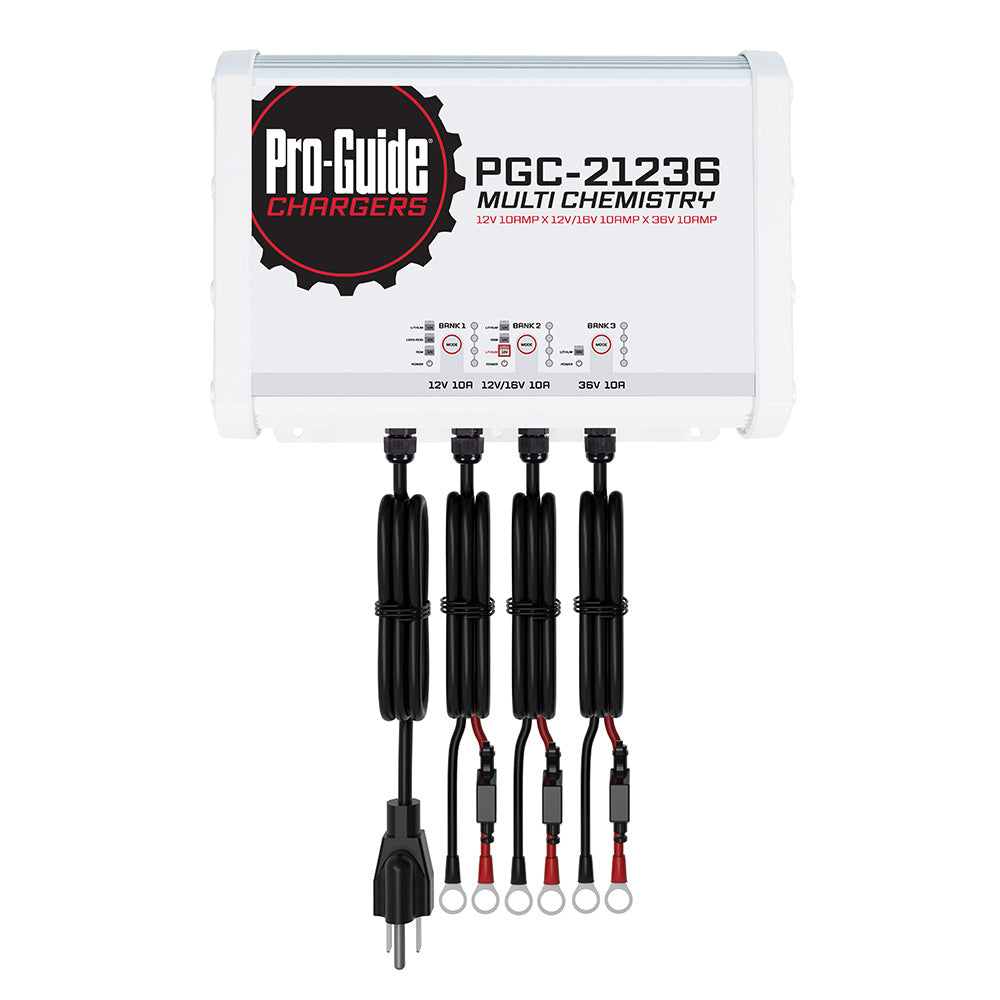

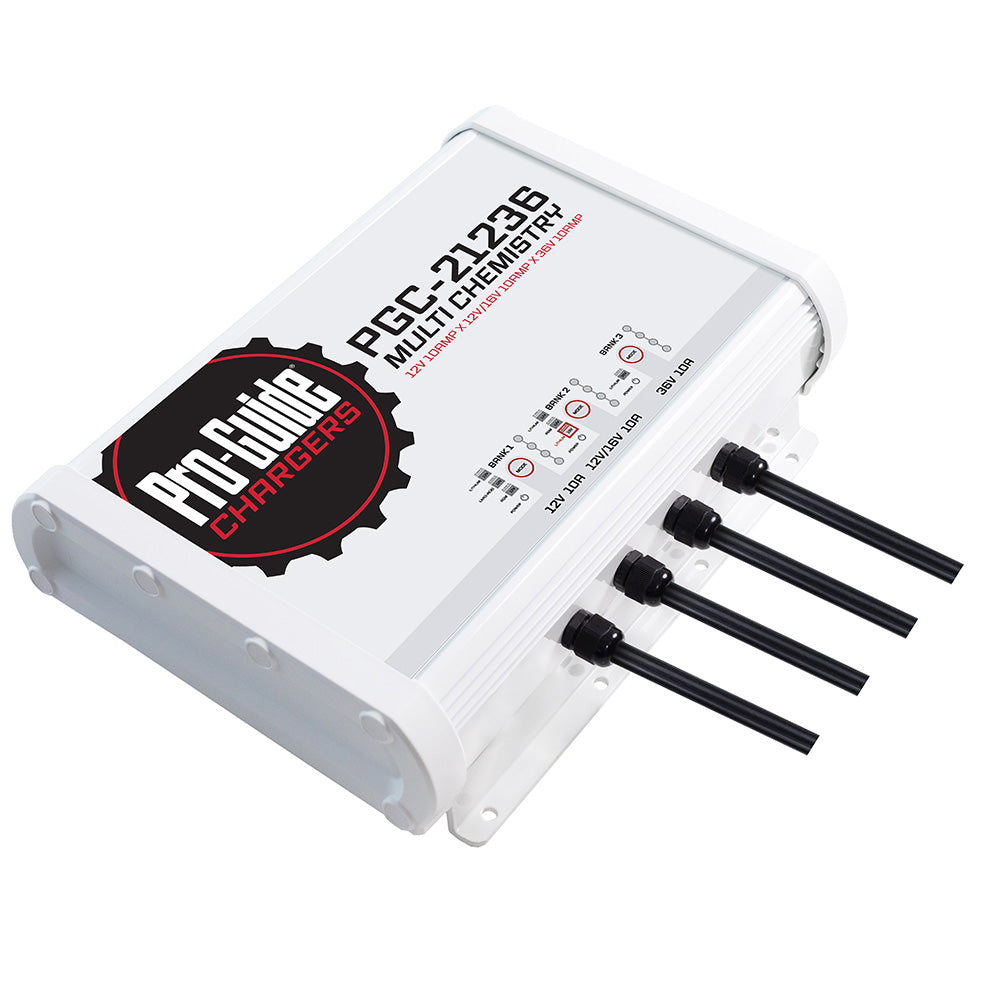

3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium, 16V Lithium 36V Lithium


• Output Voltage: DC 12V x 1, DC 12V/16V x 1 DC 36V x 1


• Max Output Voltage: 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, 43-44 for 36V Lithium Battery


• Output Current: 10A for 12V Bank, 10A for 12/16V Bank 10A for 36V Bank


• Length: 14.7


• Width: 9.96


• Height: 3.86


• Weight: 24.7 lbs


• IP Rating: 68

The Pro-Guide PGC-21236 is a versatile 3-bank on-board battery charger designed to efficiently charge multiple battery chemistries including 12V Lead Acid, AGM, Lithium, 16V Lithium, and 36V Lithium batteries. Each bank can be configured with one of three charge profiles, allowing users to customize their setup for optimal performance and battery health. This flexibility makes the PGC-21236 suitable for a wide range of applications, from recreational vehicles to commercial equipment. The charger supplies a maximum of 30 amps, providing fast and reliable charging to keep your batteries ready for your next adventure or workday.

The charger features an activation mode that supplies a brief voltage pulse to wake sleeping Lithium batteries or allows manual activation by holding the button for 3-5 seconds. Its intelligent PGC algorithm continuously monitors each battery's state of charge, ensuring accurate and safe charging over extended periods, making it ideal for year-round use. Built with durability in mind, the PGC-21236 is rated IP68 for protection against dust and water, suitable for harsh environments. Pro-Guide offers a comprehensive 2-year free and 4-year total warranty, standing behind the quality and reliability of this product.

Protection features included are output over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards, ensuring safe operation under various conditions. The charger operates on standard AC 110-120V power at 60Hz with an input current of less than 6 amps. Its compact design measures approximately 14.7 inches in length, 9.96 inches in width, and 3.86 inches in height, weighing about 24.7 pounds, making installation straightforward in many vehicle or equipment configurations. The PGC-21236 is an all-in-one charging solution designed for durability, safety, and flexibility, ensuring your batteries are maintained at optimal charge levels for maximum performance.

Features:

• Multiple battery profiles: Enables selection of three different charging profiles for versatile setup

• Wide compatibility: Suitable for 12V Lead Acid, AGM, Lithium, 16V Lithium, and 36V Lithium batteries

• Intelligent charging: Continuously monitors battery state of charge for safe and efficient maintenance

• Activation mode: Short voltage pulse or manual hold to wake or activate sleeping Lithium batteries

• Durable design: IP68 rated enclosure for protection against dust and water in harsh environments

• Comprehensive safety protections: Over-voltage, over-current, short circuit, reverse polarity, and temperature safeguards

• Universal input: Operates on 110-120V AC power at 60Hz with minimal current draw

• Compact and lightweight: Measures approximately 14.7 inches long, 9.96 inches wide, 3.86 inches high, and weighs 24.7 lbs

• Reliable warranty: Backed by a 2-year free and 4-year total warranty for peace of mind
