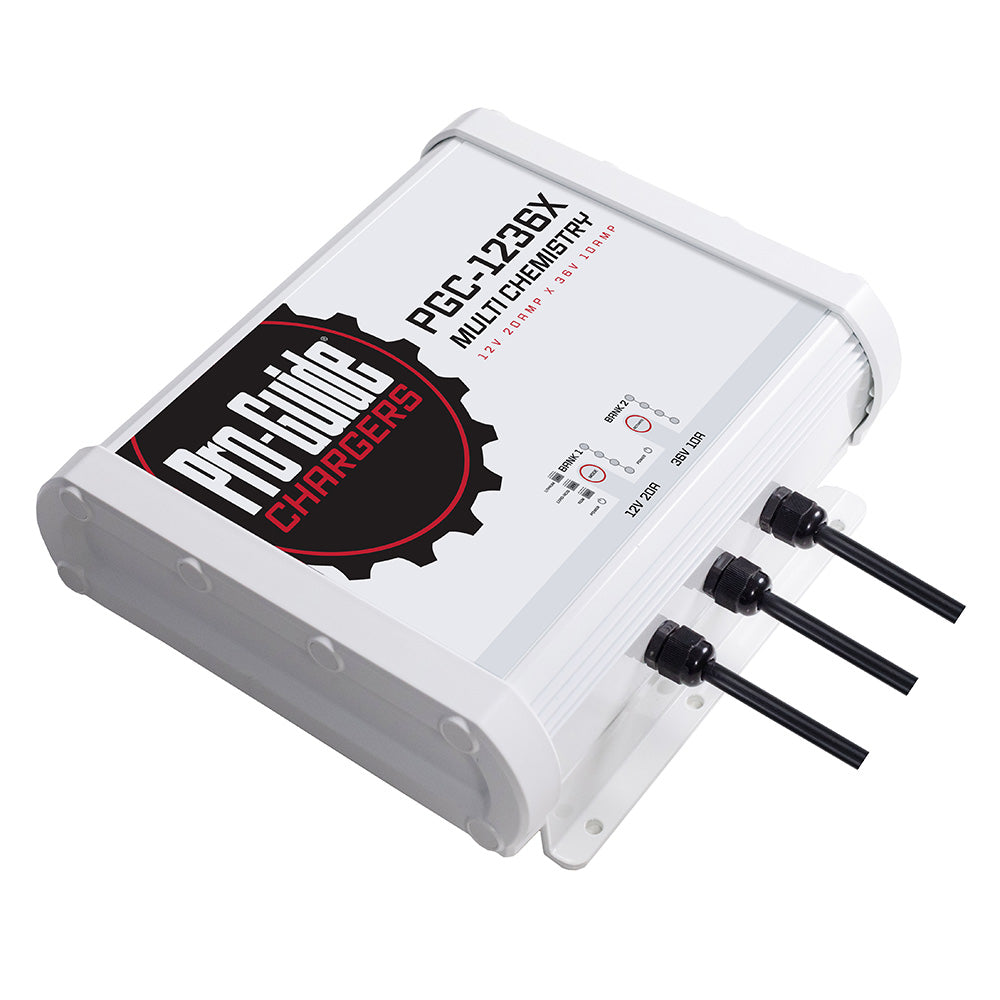

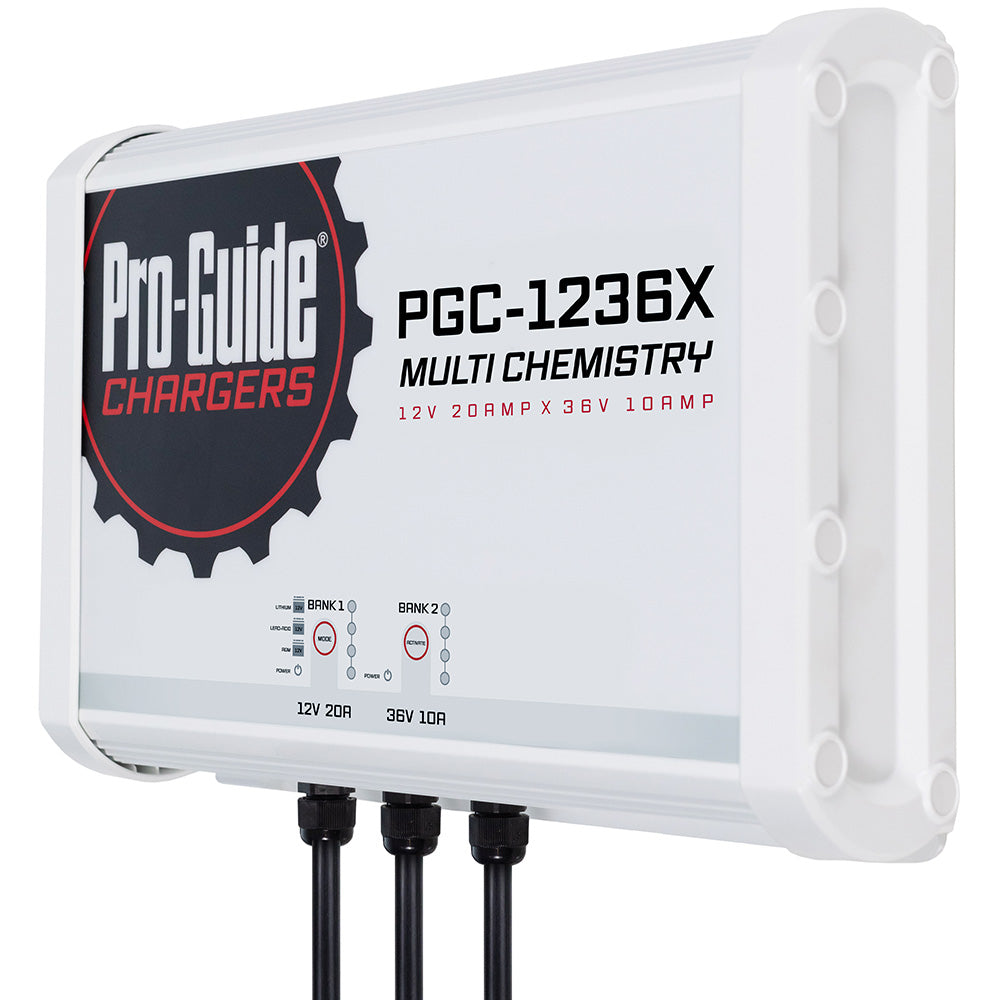

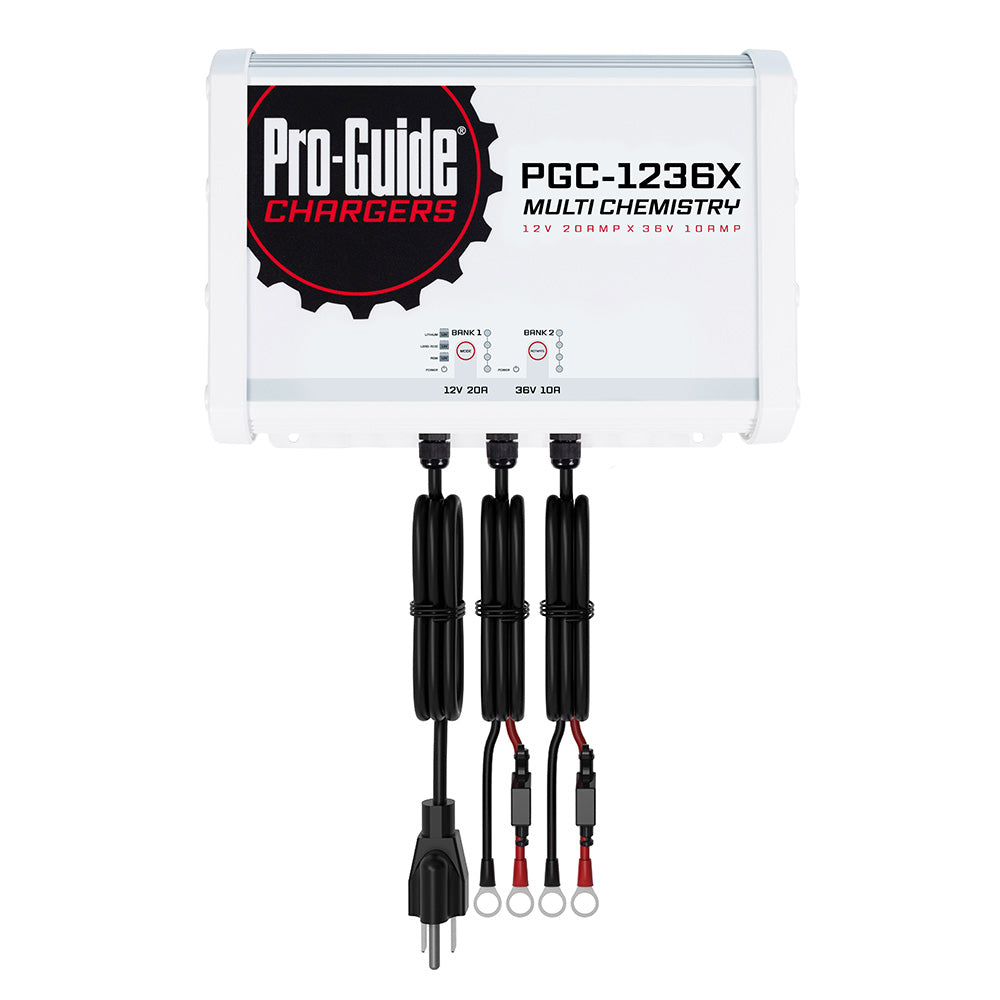

Pro-Guide Batteries 2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp - PGC-1236X

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp

The Pro-Guide PGC-1236x is a 12V Lead Acid / AGM / Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 36V Lithium


• Output Voltage: DC 12V x 1 DC 36V x 1


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 43-44 for 36V Lithium Battery


• Output Current: 20A for 12V Bank 10A for 36V Bank


• Length: 13.15


• Width: 9.96


• Height: 3.86


• Weight: 24.3 lbs


• IP Rating: 68

The Pro-Guide Batteries PGC-1236X is a versatile on-board battery charger designed for both 12V and 36V systems, making it ideal for various applications including RVs, boats, and electric vehicles. This 30-amp charger features independent banks that can be configured for lead acid, AGM, or lithium chemistries, providing flexibility to optimize your battery setup. Each 12V bank offers three selectable charge profiles, enabling users to customize charging based on battery type for efficient and safe charging. The 36V lithium bank is suitable for charging multiple lithium batteries simultaneously, ensuring your system remains ready for your next adventure.

Activation modes include a quick voltage pulse to wake dormant lithium batteries, or a manual activation by holding the button for 3-5 seconds, facilitating maintenance and troubleshooting. The charger is designed for continuous use, with an intelligent algorithm that monitors each battery's state of charge on a regular schedule, preventing overcharging and extending battery life. The robust construction and IP68 rating guarantee durability and protection against dust and water ingress, making it suitable for harsh environments. Pro-Guide stands behind this product with a two-year free warranty and a total coverage of four years, reflecting their commitment to quality and customer satisfaction.

Safety features incorporated into the PGC-1236X include over-voltage protection, over-current protection, short circuit prevention, reverse polarity safeguard, and over-temperature shutdown. It operates on standard AC power with a voltage range of 110-120V at 60Hz and consumes less than 6A of current, making it energy-efficient. The unit's compact form factor and manageable weight facilitate easy installation in a variety of settings. With output voltages up to 14.3-14.7V depending on battery chemistry, and a maximum output current of 20A for the 12V bank and 10A for the 36V bank, this charger provides reliable, high-quality power to keep your batteries charged and ready for action.

Features:

• Dual bank design supports 12V lead acid, AGM, and 36V lithium batteries

• Selectable charge profiles for optimized charging

• Activation modes include quick wake-up and manual activation

• Continuous monitoring with intelligent charging algorithm

• Durable construction with IP68 rating for dust and water resistance

• Over-voltage, over-current, short circuit, reverse polarity, and over-temperature protection

• Compact and lightweight design for easy installation

• Low power consumption with input voltage of 110-120V at 60Hz

• High output voltages up to 14.7V for lithium, 14.3V for AGM, and 14.1V for lead acid batteries

• Maximum output current of 20A (12V bank) and 10A (36V bank)
