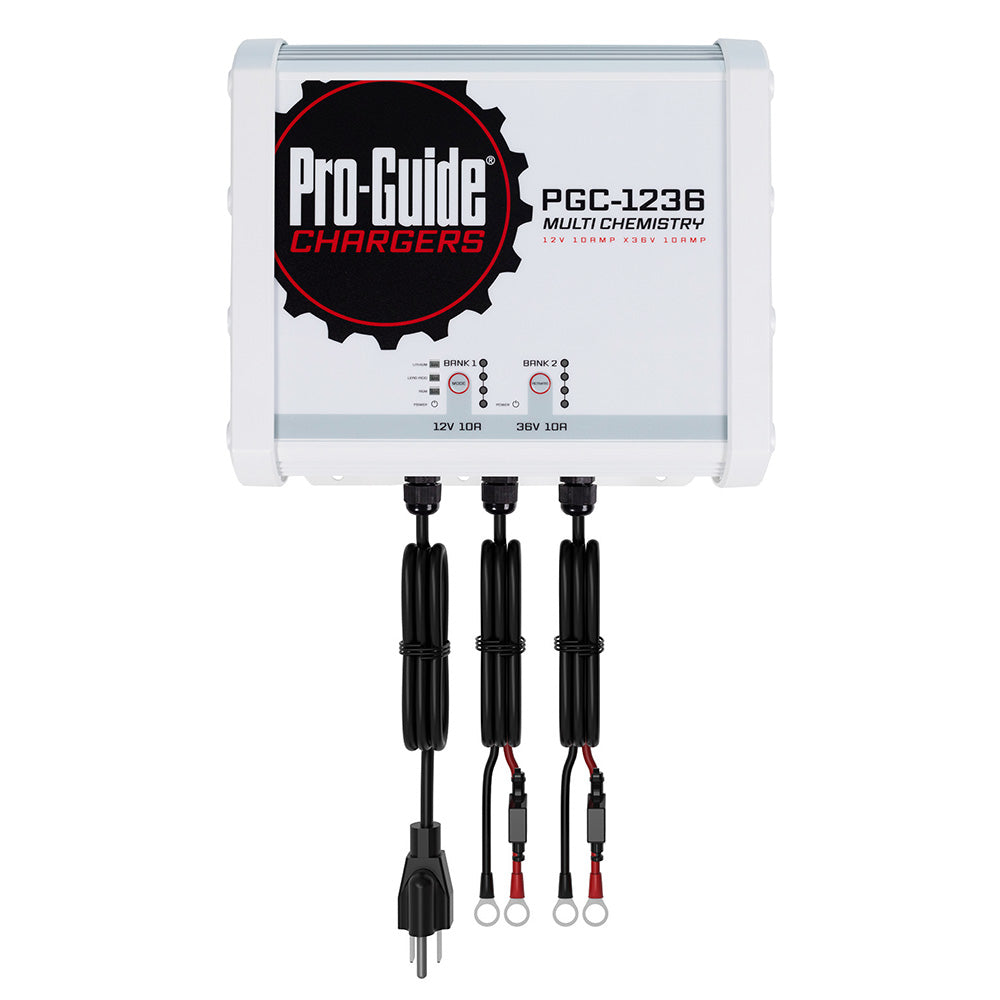

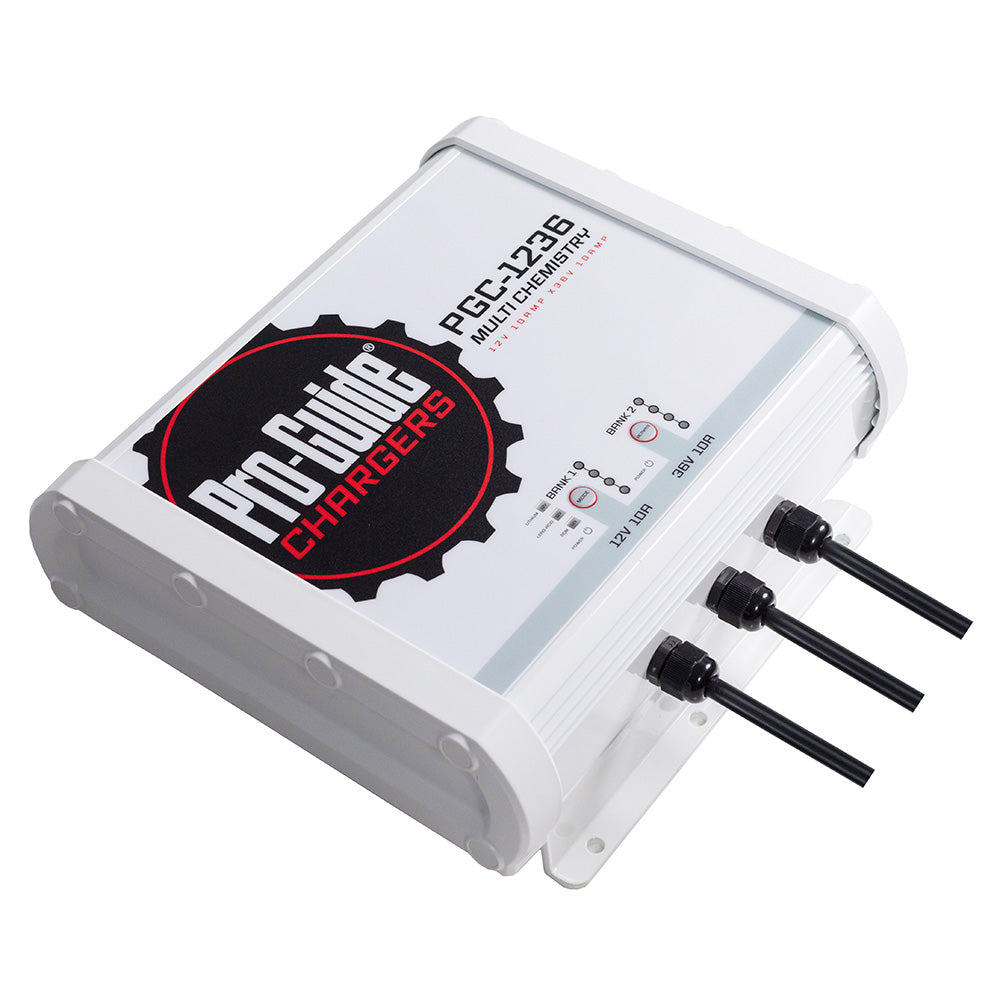

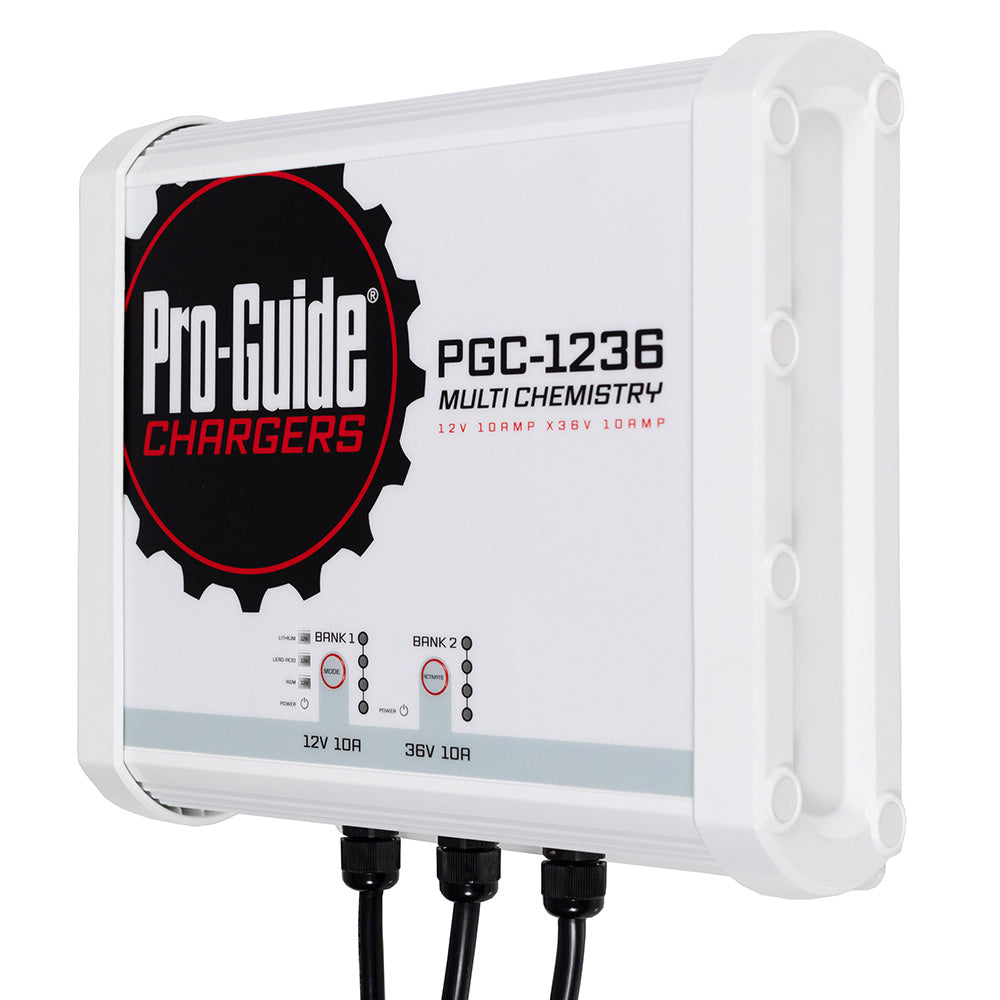

Pro-Guide Batteries 2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 20-Amp - PGC-1236

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 20-Amp

The Pro-Guide PGC-1236 is a 12V Lead Acid / AGM / Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 36V Lithium


• Output Voltage: DC 12V x 1 DC 36V x 1


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 43-44 for 36V Lithium Battery


• Output Current: 10A x2


• Length: 10.47


• Width: 9.96


• Height: 3.86


• Weight: 17.9 lbs


• IP Rating: 68

The Pro-Guide Batteries PGC-1236 is a versatile on-board battery charger designed to support both 12V Lead Acid, AGM, and Lithium batteries, along with 36V Lithium batteries. This 20-amp charger features a dual-bank system that allows users to select from three different charge profiles for each 12V bank, providing flexibility to optimize charging based on battery chemistry. Whether you need to charge a single 12V lead-acid battery or a 36V Lithium system, this charger is engineered to deliver reliable performance and compatibility. Its activation mode supplies a brief voltage pulse to wake sleeping Lithium batteries, and a manual activation option ensures batteries are ready for use. The intelligent PGC algorithm continuously monitors each battery's state of charge on a set timeline, maintaining optimal charge levels and ensuring readiness for your next adventure. Designed for year-round use, the charger stays plugged in, providing maintenance charging and peace of mind. Backed by over 40 years of industry experience, Pro-Guide Batteries offers a comprehensive 2-year free warranty and a total of 4 years of coverage, supporting durability and customer satisfaction. Safety features include output over-voltage, over-current, short circuit, reverse polarity, and over-temperature protections, making this charger robust against common electrical issues. It operates on standard AC power with an input of 110-120V at 60Hz and consumes less than 6A. The compact design measures approximately 10.5 inches long, 10 inches wide, and 3.9 inches high, weighing around 18 pounds, and features an IP68 rating for protection against dust and water ingress. Whether for personal or professional use, the Pro-Guide PGC-1236 ensures efficient, safe, and flexible battery management for a wide range of applications.

Features:

• Supports 12V Lead Acid, AGM, Lithium, and 36V Lithium batteries for versatile charging

• Dual-bank system with three selectable charge profiles for each bank

• Activation mode to wake sleeping Lithium batteries and manual activation for readiness

• Intelligent charging algorithm monitors battery state of charge for optimal maintenance

• Designed for year-round use with continuous connection capability

• Comprehensive safety protections including over-voltage, over-current, short circuit, reverse polarity, and over-temperature

• Operates on standard AC power with low input current consumption

• Compact and durable design with IP68 rating for dust and water resistance

• Backed by a 2-year free warranty and 4-year total warranty for reliability and support
