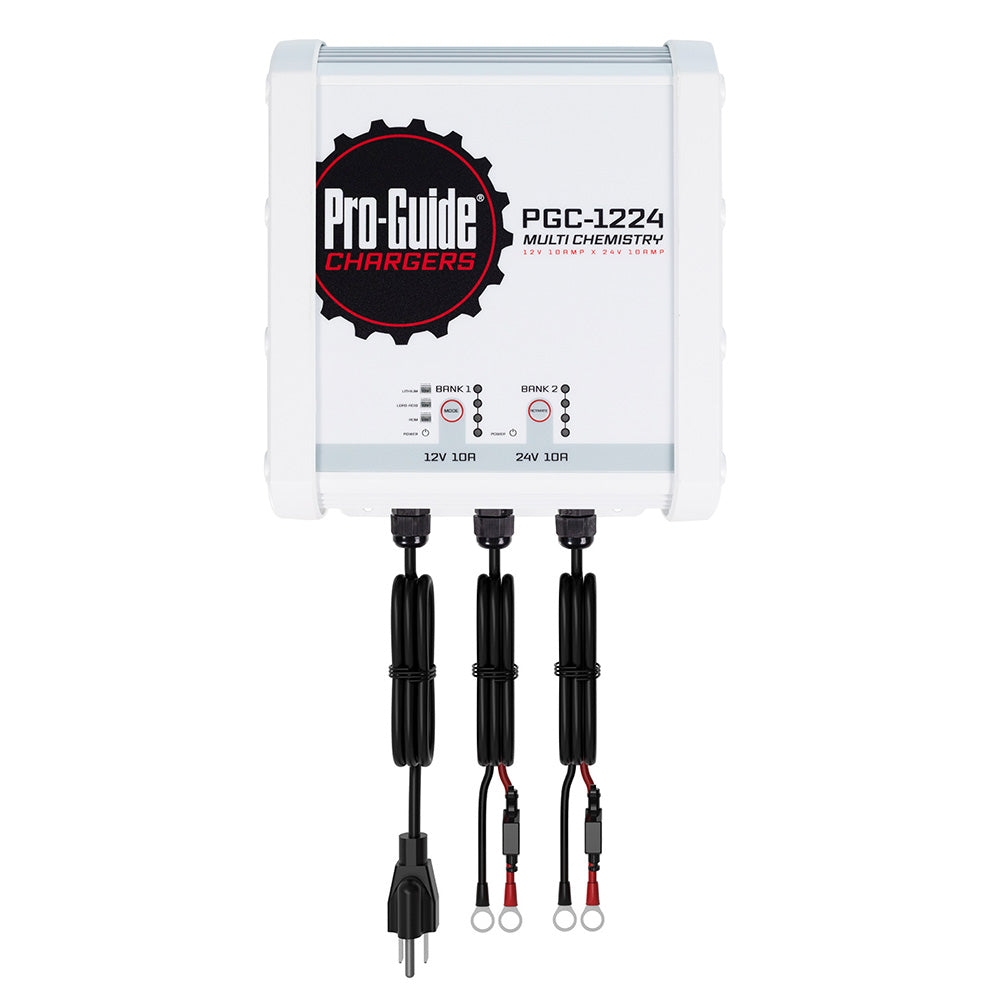

Pro-Guide Batteries 2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp - PGC-1224

2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp

The Pro-Guide PGC-1224 is a 12V Lead Acid / AGM / Lithium 24V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 24V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage


• Output Over Current


• Output Short Circuit


• Output Reverse Polarity


• Over Temperature

Input:

• Input Voltage: AC 110-120V


• Frequency: 60Hz


• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 24V Lithium


• Output Voltage: DC 12V x 1 DC 24V x 1


• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 28.8-29.2 for 24V Lithium Battery


• Output Current: 10A x2


• Length: 8.19


• Width: 9.96


• Height: 3.86


• Weight: 14.3 lbs


• IP Rating: 68

The Pro-Guide PGC-1224 is a versatile on-board battery charger designed to support both 12V and 24V battery systems, including Lead Acid, AGM, and Lithium chemistries. This charger offers a dual-bank setup, allowing users to independently charge one 12V bank and one 24V bank simultaneously. Its flexible charge profiles enable optimal charging conditions for different battery types, ensuring efficient and safe operation. The ability to select from three charge profiles on the 12V bank accommodates various battery chemistries, making it suitable for a wide range of applications. The inclusion of a manual activation mode allows users to wake or maintain Lithium batteries that may be temporarily inactive, ensuring readiness for your next adventure. The PGC line is engineered for year-round installation, with an intelligent algorithm that monitors each battery's state of charge at regular intervals, maintaining peak performance and battery longevity. Pro-Guide's commitment to quality is backed by over 40 years of experience and a comprehensive two-year free warranty, with a total coverage of four years. Safety features include protection against output over-voltage, over-current, short circuits, reverse polarity, and overheating, providing peace of mind during operation. The charger is designed to operate on standard AC power, drawing less than 6 amps at 110-120V, 60Hz. Its compact size and durable IP68 rating make it suitable for a variety of harsh environments, ensuring reliable performance regardless of conditions. Whether used in trucks, RVs, or marine applications, the Pro-Guide PGC-1224 delivers dependable, efficient battery management, helping you stay powered up and ready for your next journey.

Features:

• Dual-bank design supports 12V and 24V battery systems simultaneously

• Supports Lead Acid, AGM, and Lithium battery chemistries for versatile applications

• Selectable charge profiles for optimized battery charging

• Manual activation mode to wake or maintain Lithium batteries

• Intelligent charging algorithm monitors battery states for optimal charge levels

• Built-in protection against over-voltage, over-current, short circuit, reverse polarity, and temperature extremes

• Compact, durable design with IP68 rating for all-weather use

• Low power consumption, drawing less than 6 amps at 110-120V AC

• Reliable operation suitable for year-round installation in trucks, RVs, and marine environments

• Pro-Guide's over 40 years of expertise backed by a 2-year free and 4-year total warranty
