JL Audio MX Marine Amplifier Monoblock Wide-Range 300 Watts 12v - 010-03324-00

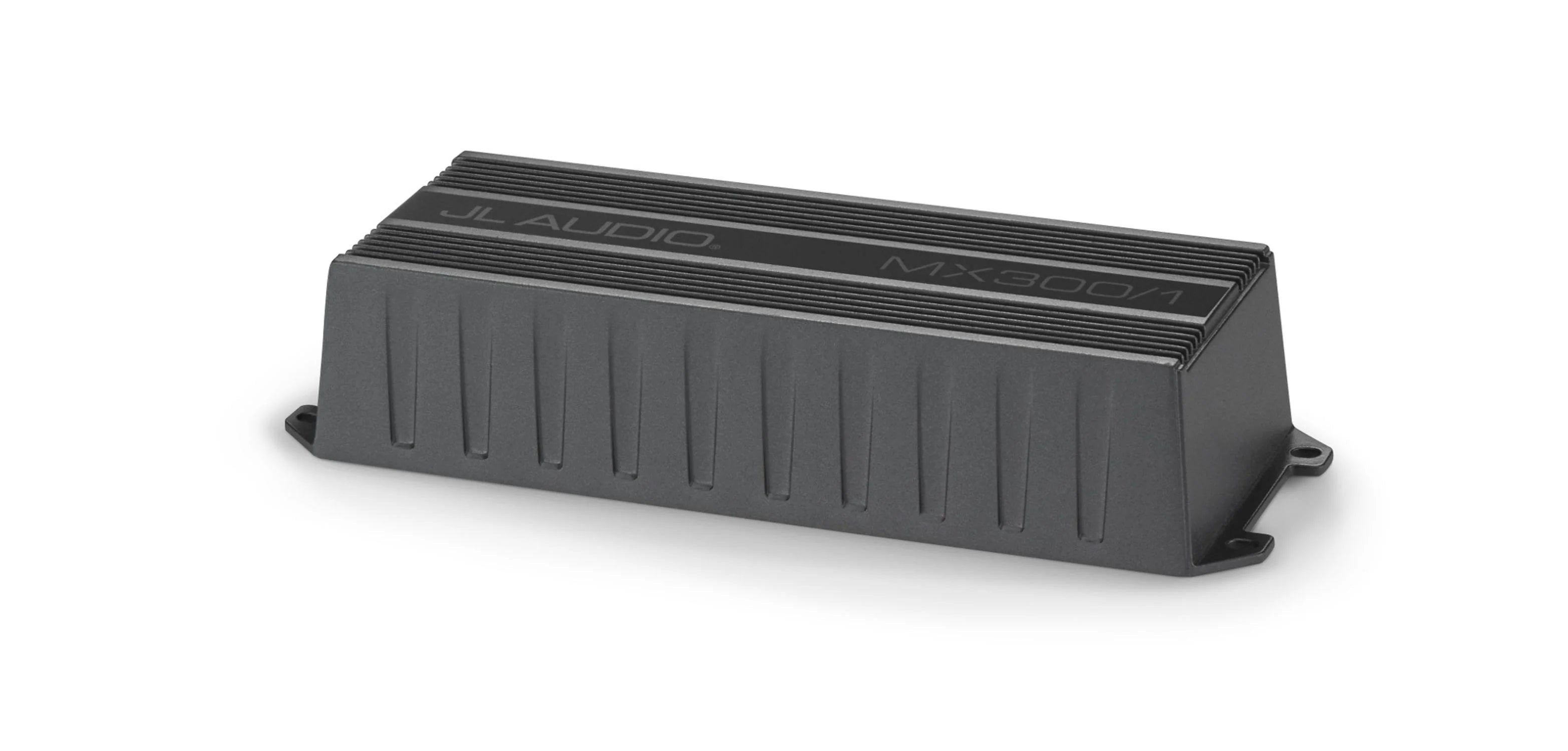

JL Audio MX Marine Amplifier Monoblock Wide-Range 300 Watts 12v

98406

Monoblock Class D Wide-Range Amplifier, 300 W x 1 @ 2 ohms / 160 W x 1 @ 4 ohms - 14.4V

Engineered specifically for powersports applications, the MX300/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.

With a robust 300W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX300/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.

Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

USA Limited Warranty: Two (2) years from the original date of purchase.

@ 4 ohms
160 W RMS x 1

@ 3 ohms
220 W RMS x 1

@ 2 ohms
300 W RMS x 1

@ 1.5 ohms
N/A

Rated Continuous (RMS) Power @ 12.5 V

@ 4 ohms
160 W RMS x 1

@ 3 ohms
200 W RMS x 1

@ 2 ohms
250 W RMS x 1

@ 1.5 ohms
N/A

General Specifications

Frequency Response
20 Hz - 12 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power
>85 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

S/N Ratio, referred to 1 W
>64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Damping Factor @ 4 ohms
>150 / 50 Hz

Damping Factor @ 2 ohms
>75 / 50 Hz

THD+N @ Rated Power
<1% @ 2 ohms

Input Voltage Range @ RCA Inputs
Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)

Min.Copper Power / Ground Wire Gauge
8 AWG wire

Fuse Rating
30 A (AFS, AGU or MaxiFuse™)

Signal Processing

Filter Mode(s)
Low-Pass only

Filter Slope(s)
24 dB/octave

Filter Frequency Range
40 Hz - 400 Hz

Detented, Calibrated Filter Freq. Potentiometer
Yes

Filter Defeat Function
Yes

Infrasonic Filter
20 Hz - 40 Hz, variable

Bass Boost EQ
0 to +12 dB @ 43 Hz

Output Polarity Switch
Yes

Remote Subwoofer Level Control
Optional (M-RBC-1)

Remote Bass EQ Boost Control
No

Pass-Through Preamp Output
None

Physical Specifications

Height
1.77 in / 45 mm

Width
8.66 in / 220 mm

Depth
3.09 in / 78.5 mm

Net Weight
3.18 lb / 1.44 kg
