ARCO Marine Zeus A275L J-180 4" Alternator w/Terminal Block - Part 4022

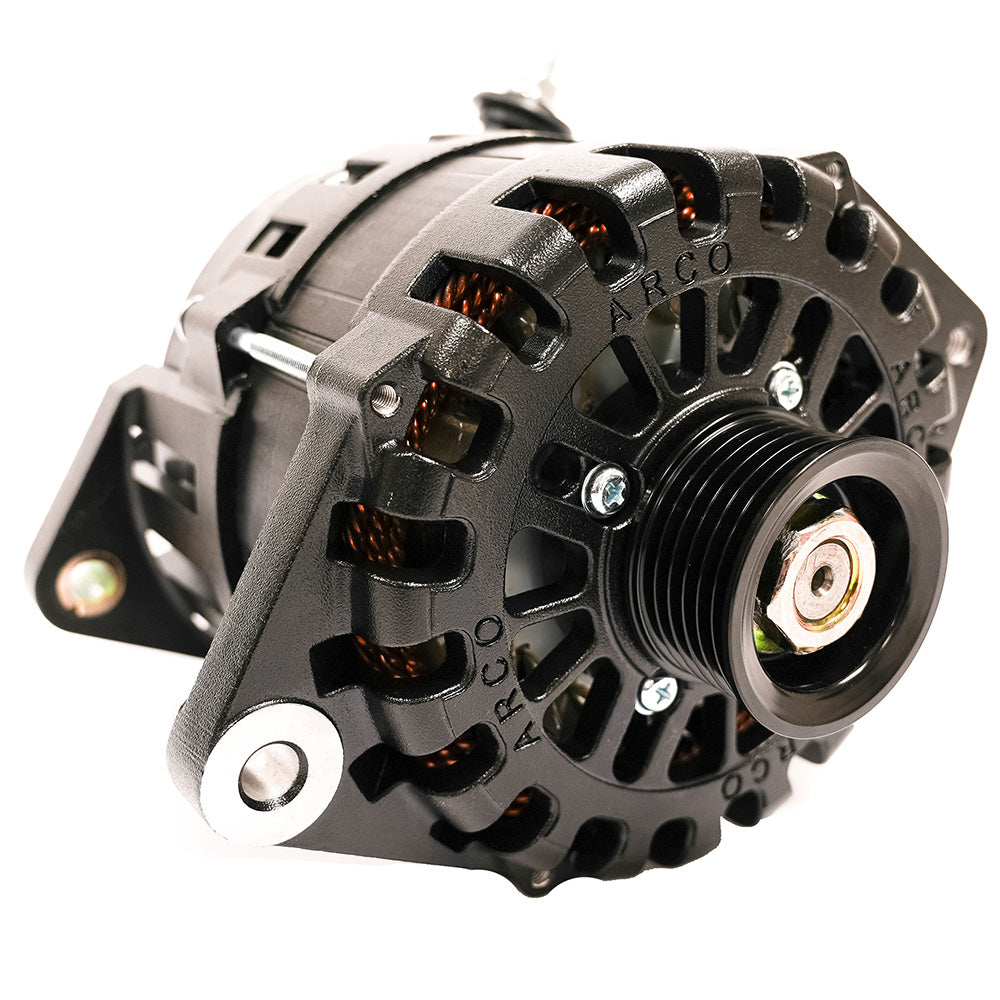

Zeus A275L J-180 4" Alternator with Terminal Block

The highest power output alternator in its size/class.

Features:

• Engineered for High Energy Production.


• Suitable for Marine, RV, Military, and Commercial applications.


• Rapidly charges large battery banks.


• Coolest operating temperatures for increased performance.


• It runs 8 - 20% cooler than incumbent alternators due to heat-shedding coatings, a refrigerator on the housing exterior, dual cooling fans, and OEM components.


• It is optimized for performance at idle speeds.


• Reduces the need for a generator by creating additional power with your engine.


• Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.


• Use an ARCO Zeus Bluetooth alternator regulator or lithium battery charging for maximum performance.


• SAE J1171 Certified.


• Made in the U.S.A.

Technical Specifications:

• Voltage - 12v


• Field Type - P


• Rotor Poles - 16


• Stator Size - 138mm


• Frame Size - Large


• Weight - 14.9 lbs/6.7 kg


• Regulation - External Only (These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.)


• Output Voltage - 14.1v (Default)


• Finish - (Black) Cerakote or E-coating


• Cut-In RPM - 1,061 Alternator RPM


• Maximum Alt RPM - 19,000


• Battery Post - M8 Thread Post, Side Mount


• Standard Pulley - 49K6 (6-groove, 49mm)


• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5


• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)


• Diodes - 6 positive, 6 negative, 50A Rated, Avalanche


• Max Output (Cold, 9,000 RPM) - 311 Amps


• Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps


• Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps


• Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

• Replaces most Volvo Penta alternators using a 4” J180 saddle-style mount

The Zeus A275L is optimized for performance at idle speeds, making it a reliable choice for anyone looking to reduce the dependency on generators. Its advanced E-Coat/Cerakote finish not only enhances durability but also absorbs less heat, allowing for sustained power output. This alternator is SAE J1171 Certified and proudly made in the U.S.A., ensuring top-notch quality and reliability for all your power needs.

Features:
* Engineered for high energy production, perfect for demanding applications.
* Rapidly charges large battery banks, ensuring you have power when you need it.
* Operates cooler than traditional alternators, enhancing performance and lifespan.
* Optimized for idle speeds, reducing the need for a generator.
* Advanced E-Coat/Cerakote finish helps absorb less heat for sustained output.
* SAE J1171 Certified, meeting rigorous safety and performance standards.
* Made in the U.S.A., delivering exceptional quality and craftsmanship.
