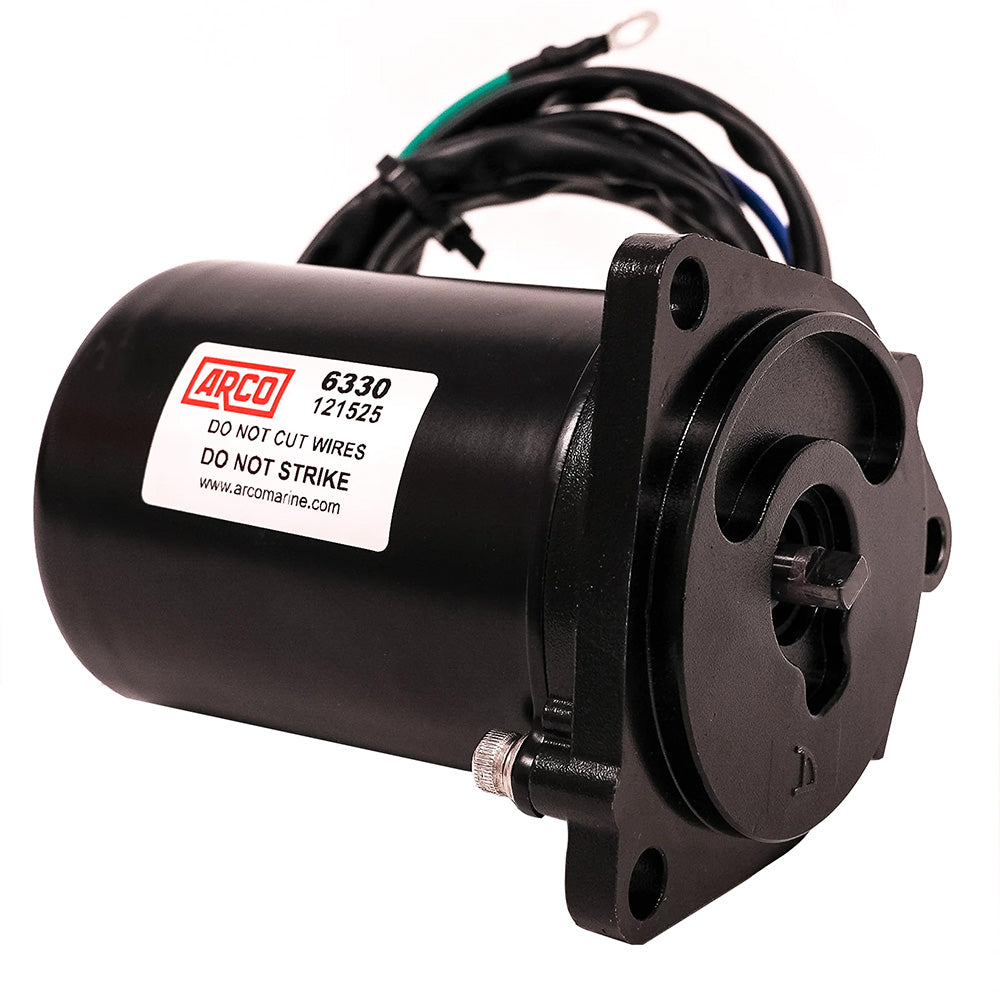

ARCO Marine Replacement Tilt Trim Motor for Yamaha 6KA-43880 - 200-300HP 4-Stroke Engines - 6330

Replacement Tilt Trim Motor for Yamaha 6KA-43880

Fits Yamaha 200-300HP, 2020 present, 4-Stroke engines, 2-wire connection, 3-bolt mount, Includes O-ring, Ring Terminal Ends.

Replaces Part Numbers:

• YAMAHA 6KA-43880-00-00


• YAMAHA 6KA-43880-01-00


• YAMAHA 6KA-43880-09-CE


• YAMAHA 6KA-43800-00-8D


• YAMAHA 6KA-43800-01-8D

Quality Assurance:

• Epoxy powder-coated for maximum corrosion protection


• Motor shafts are induction case hardened at bearing surfaces for superior wear resistance

Precision Testing:

• All armatures tested to withstand 50 times operation voltage (12V)


• All motor performance was tested at 5 different load levels


• All motors must meet or exceed OEM performance before being boxed

Upgrade your Yamaha boat's tilt and trim system with the ARCO Marine Replacement Tilt Trim Motor designed specifically for Yamaha 6KA-43880 models. Compatible with Yamaha 200-300 horsepower 4-stroke engines manufactured from 2020 onward, this motor ensures reliable performance and durability. Featuring a 2-wire connection and a 3-bolt mount, it is a direct replacement for multiple Yamaha part numbers including 6KA-43880-00-00, 6KA-43880-01-00, 6KA-43880-09-CE, 6KA-43800-00-8D, and 6KA-43800-01-8D, making it a versatile choice for maintenance and repairs.

The ARCO Marine tilt trim motor is epoxy powder-coated to provide maximum corrosion resistance, which is essential for marine environments. The motor shafts are induction case-hardened at the bearing surfaces, offering superior wear resistance and extending the lifespan of the component. Each unit undergoes rigorous testing, including armature testing to withstand 50 times the standard 12V operation voltage and performance evaluation at five different load levels, ensuring it meets or exceeds OEM standards before shipping.

Installation is straightforward with the included O-ring and ring terminal ends, providing a secure and waterproof connection to your boat’s electrical system. This motor is built with precision and quality assurance, ensuring consistent operation and long-term reliability. Please note that this product may not be returnable to the original point of purchase; contact the manufacturer directly for any issues or concerns. Trust ARCO Marine for dependable marine engine components that keep your vessel operating smoothly and safely.

Features:

• Designed for Yamaha 200-300HP 4-stroke engines (2020+)

• 2-wire connection for easy installation

• 3-bolt mounting system for secure fit

• Includes O-ring and ring terminal ends for waterproof connection

• Epoxy powder-coated for maximum corrosion resistance

• Induction case-hardened motor shafts for wear resistance

• Rigorous testing to meet or exceed OEM performance standards
